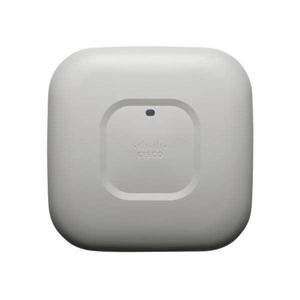

Cisco AIR-CAP1602E-Z-K9 Dual-Band 802.11n Access Point PoE | Wty
The Cisco Aironet 1602E Access Point delivers enterprise-grade wireless connectivity with 256 MB DRAM, 32 MB Flash memory, 3x3:2 MIMO dual-band radios supporting up to 300 Mbps data rates, external RP-TNC antenna connectors, and a compact form factor measuring 22.1 × 22.1 × 4.7 cm and weighing just 0.86 kg. This controller-based 802.11a/g/n access point is specifically engineered for challenging indoor environments such as warehouses, factories, and large commercial spaces where customisable RF coverage design is essential. As a certified refurbished unit from Reboot IT, this access point has undergone comprehensive testing to ensure reliable performance comparable to new equipment, backed by a 1 year warranty. Ideal Applications
The AIR-CAP1602E-Z-K9 excels in demanding enterprise environments requiring flexible wireless infrastructure. The external antenna capability makes it perfect for warehouses and distribution centres where directional coverage patterns optimise signal propagation around metal racking and obstacles. Manufacturing facilities benefit from its industrial-grade operating temperature range of -20°C to 50°C and plenum-rated certification for above-ceiling installations. Educational campuses, healthcare facilities, and corporate offices can deploy this access point in high-density environments to support numerous concurrent users accessing bandwidth-intensive applications including HD video streaming, cloud-based collaboration tools, and virtual desktop infrastructure. Enterprise-Grade Performance Features
The 1602E model supports concurrent dual-band operation across 2.4 GHz and 5 GHz frequencies, allowing seamless client distribution across 24 non-overlapping 20 MHz channels in the 5 GHz band. Advanced 3x3:2 MIMO technology with spatial streaming delivers robust throughput up to 300 Mbps whilst maintaining connection stability in RF-challenging environments. The Z regulatory domain provides extensive global frequency support including channels from 2.412 to 2.472 GHz and multiple 5 GHz bands, ensuring compliance across international deployments. Standard 802.3af Power over Ethernet eliminates the need for separate power infrastructure, simplifying installation and reducing deployment costs. Comprehensive Security Architecture
Enterprise security protocols include WPA2, 802.11i, and 802.1X authentication working in concert with AES encryption to protect sensitive network traffic. The access point supports multiple EAP authentication types including EAP-TLS, EAP-TTLS/MSCHAPv2, PEAP v0/EAP-MSCHAPv2, EAP-FAST, PEAP v1/EAP-GTC, and EAP-SIM, providing flexible integration with existing RADIUS and authentication infrastructure. This multi-layered security approach ensures that corporate data remains protected whilst supporting diverse client device requirements across BYOD and managed endpoint scenarios. Essential Technical Specifications
- Memory Configuration: 256 MB DRAM, 32 MB Flash memory
- Radio Technology: 3x3:2 MIMO, dual-band concurrent (2.4 GHz and 5 GHz)
- Maximum Data Rate: 300 Mbps (802.11n)
- Antenna System: External RP-TNC connectors (antennas sold separately)
- Network Interface: Gigabit Ethernet (10/100/1000BASE-T)
- Power Requirements: 15.4W via 802.3af PoE
- Dimensions: 22.1 × 22.1 × 4.7 cm
- Weight: 0.86 kg
- Operating Temperature: -20°C to 50°C
- Regulatory Domain: Z (global multi-region support) Controller Integration
This controller-based access point requires a Cisco Wireless LAN Controller running Cisco Unified Wireless Network Software or compatible Cisco IOS Software Release. The centralised management architecture enables streamlined configuration, monitoring, and firmware updates across distributed wireless infrastructure. Network administrators benefit from simplified troubleshooting, real-time performance analytics, and policy enforcement through the controller interface, reducing operational overhead whilst maintaining consistent wireless service quality. Cosmetic Condition Grading
Certified refurbished network equipment from Reboot IT is available in two cosmetic grades. Excellent grade units exhibit minimal signs of previous use with no deep scratches, cracks, paint chips, or broken pieces, presenting near-new appearance ideal for visible installations. Good grade units remain fully functional but may display light scratches on the external body, minor dings or dents, and small paint chips from standard commercial use, offering exceptional value for back-of-house or ceiling-mounted deployments where cosmetic condition is secondary to performance. Reboot IT Quality Assurance
Reboot IT has been an expert in the refurbished technology industry, utilising cutting-edge diagnostic software and comprehensive testing pro
