ICRON Ranger 2312 USB 2.0 Extender 2-Port | Wty

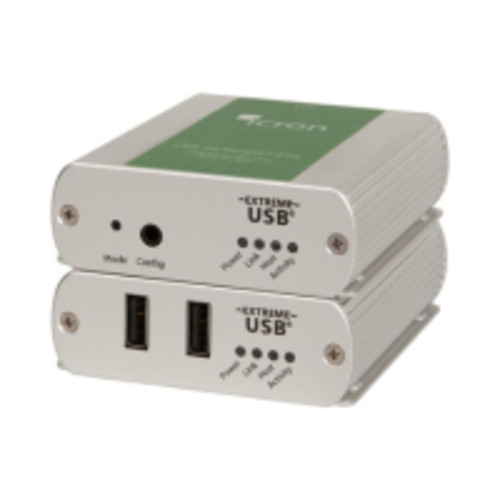

The ICRON USB 2.0 Ranger 2312 is a professional-grade, dual-port USB extender system featuring two USB 2.0 Type A ports, up to 480 Mbps data transfer speed, 100-metre extension range over CAT 5e/6/7 cabling, 1.5 Amp total power delivery, aluminium enclosure construction, and compact 87mm x 75mm x 26mm dimensions per unit, delivering reliable long-distance USB connectivity for industrial, commercial, and professional applications.
This certified refurbished system comprises two units—a Local Extender (LEX) and Remote Extender (REX)—that work together to eliminate the limitations of standard USB cable lengths whilst maintaining full USB 2.0 protocol support. Ideal for environments requiring USB device connectivity beyond conventional distances, this plug-and-play solution requires no software drivers and works seamlessly across all major operating systems. Professional Applications and Use Cases
Industrial Automation and Manufacturing
Perfect for extending connectivity to HMI panels, data loggers, barcode scanners, and industrial control peripherals in factory environments where equipment must be positioned far from control stations.
Healthcare and Medical Imaging
Provides stable, extended connections for diagnostic devices, medical imaging equipment, patient monitoring systems, and laboratory instruments in clinical settings where distance and reliability are critical.
Education and Interactive Learning
Supports interactive whiteboards, document cameras, teaching tools, and additional peripherals like webcams or touchscreens in classrooms and lecture halls.
Security and Surveillance
Enables remote placement of webcams, USB security devices, access control readers, and monitoring equipment in surveillance installations and security operations centres.
Digital Signage and AV Installations
Facilitates professional audio/visual setups by extending connections to touchscreens, media players, control interfaces, and presentation devices in conference rooms and display installations.
Broadcasting and Live Streaming
Supports remote camera control, audio interfaces, and production equipment in broadcasting studios and live event production environments. Key Features and Benefits
- Extended Reach Without Signal Loss: Proprietary ExtremeUSB technology maintains full USB 2.0 performance across the entire 100-metre extension range, ensuring reliable data transmission without degradation
- Dual-Port Flexibility: Two USB 2.0 ports on the remote unit allow simultaneous connection of multiple devices, supporting up to 30 USB devices or 4 USB hubs with 26 devices
- Universal Compatibility: Works with all USB 2.0 High-speed (480 Mbps), USB 1.1 Full-speed (12 Mbps), and Low-speed (1.5 Mbps) devices, plus backward compatible with USB 3.0 host controllers
- Plug-and-Play Simplicity: Zero configuration required—simply connect via standard networking cable for instant operation across Windows, macOS, Linux, and Chrome OS platforms
- Flexible Power Options: Power adapter can be connected to either the LEX or REX unit, with power delivery over the CAT cable link, providing installation versatility
- Industrial-Grade Construction: Durable silver anodised aluminium enclosure with mounting slots for cable ties or optional rack-mounting hardware ensures reliable performance in demanding environments
- Comprehensive LED Status Indicators: Blue power, green link, green host, and amber activity LEDs on both units provide instant visual confirmation of system operation and data transmission
- Enhanced Mass Storage Performance: Built-in acceleration technology optimises bulk transfer speeds for USB 2.0 storage devices including flash drives and external hard drives
- Wide Environmental Tolerance: Operates reliably in temperatures from 0°C to 50°C with 20–80% relative humidity, suitable for diverse installation environments Technical Specifications
- Extension Distance: Up to 100 metres over solid core CAT 5e/6/7 unshielded twisted pair cabling
- USB Ports: 1x USB Type B host connector (LEX), 2x USB Type A device connectors (REX)
- Data Transfer Rates: USB 2.0 High-speed up to 480 Mbps, Full-speed 12 Mbps, Low-speed 1.5 Mbps
- Power Supply: Universal input 100–240V AC, output 24V DC 1A with interchangeable regional power cords
- Available USB Power: Up to 1 Amp per port; 1.5 Amps total when both ports in use
- LEX Unit Dimensions: 87.0mm (W) x 75.0mm (D) x 26.0mm (H), Weight 137g
- REX Unit Dimensions: 87.0mm (W) x 75.0mm (D) x 26.0mm (H), Weight 157g
- System Shipping Weight: 760g complete with accessories
- Operating Te
