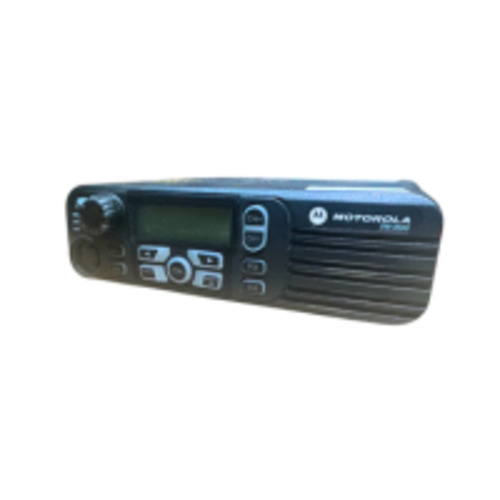

Motorola DM3600 MOTOTRBO Digital Mobile Radio VHF/UHF 160Ch Display
The Motorola DM3600 head unit is a professional-grade dual-mode analogue/digital mobile radio featuring 1,000 channel capacity, operating across VHF (136-174 MHz) or UHF (403-527 MHz) frequency bands with adjustable power output ranging from 1W to 45W depending on model variant, equipped with a 2-line alphanumeric display, ETSI DMR digital protocol, and robust 3W internal speaker with front-projecting audio design. This certified refurbished MOTOTRBO mobile radio head unit delivers enterprise-grade communication reliability for transport, logistics, emergency services, construction, and fleet management applications at a fraction of the cost of new equipment.
Important: This listing is for the radio head unit only. No accessories are included—the handset/microphone, mounting hardware, power cables, and other accessories must be purchased separately. All units have the black cosmetic cover missing. Good grade units will have the rubber turning knob missing; however, the radio remains fully functional and can change frequency using the metal knob underneath. Professional Communication for Demanding Environments
The DM3600 head unit excels in vehicle-mounted and fixed-base installations where reliable two-way communication is critical. Transport companies benefit from the 1,000-channel capacity for managing multiple fleets and dispatch zones, whilst construction sites appreciate the MIL-STD-810 durability that withstands harsh jobsite conditions. Emergency services utilise the programmable emergency button and priority calling features, whilst logistics operations leverage the text messaging capability for silent coordination in noise-sensitive environments. Key Features and Benefits
- Dual-Mode Flexibility: Seamlessly operates in both analogue and DMR digital modes, allowing gradual migration to digital whilst maintaining compatibility with existing analogue systems
- Enterprise-Grade Audio: 3W internal speaker with front-projecting design ensures clear communication even in noisy environments, with external speaker support up to 13W for enhanced audio output
- Intuitive Operation: Large navigation buttons, four programmable function keys, and user-friendly icon-driven interface enable quick access to frequently used features without complex menu navigation
- Military-Spec Durability: IP54 rated protection against dust and water ingress, tested to MIL-STD-810 specifications for shock, vibration, temperature extremes (-30°C to 60°C), and environmental resistance
- Advanced Call Management: Individual and group calling, emergency signalling, remote monitor, radio disable, and PTT ID functions provide comprehensive fleet coordination capabilities
- Remote Mount Compatible: Supports remote mount control head configuration for flexible installation options Essential Technical Specifications
- Frequency Coverage: VHF 136-174 MHz or UHF 403-470 MHz / 450-527 MHz (model dependent)
- Channel Capacity: 1,000 programmable channels with ETSI DMR digital protocol (ETSI-TS 102 361)
- Power Output: Adjustable 1-25W (low power) or 25-45W VHF / 25-40W UHF (high power models)
- Display: 2-line alphanumeric LCD with multi-colour LED status indicators
- Audio Performance: 3W internal speaker, 7.5W/13W external speaker capability, 3% audio distortion typical
- Receiver Sensitivity: 0.30 µV analogue (12 dB SINAD), 0.3 µV digital (5% BER)
- Operating Voltage: 13.6V DC nominal (standard 12V vehicle systems)
- Dimensions: 51 × 175 × 206 mm (H × W × L)
- Weight: 1.8 kg
- Operating Temperature: -30°C to 60°C with ±1.5 ppm frequency stability Reboot IT Verified Refurb Certification
Every Motorola DM3600 head unit undergoes Reboot IT's comprehensive Verified Refurb certification process, where our technicians meticulously test all features and functions using cutting-edge diagnostic software. Established in 2001, Reboot IT has become Australia's leading refurbisher of professional communication equipment, applying over two decades of expertise to ensure your radio performs to manufacturer specifications.
Our thorough testing protocol verifies transmit and receive performance across all frequency channels, validates audio quality and clarity, confirms proper operation of all programmable buttons and display functions, and ensures accessory connector compatibility. Each unit receives a complete functional assessment to guarantee reliable operation in demanding professional environments. Cosmetic Condition Guide
Please note: All units (both Excellent and Good grade) have the black cosmetic cover missing. This does not affect radio functionality.
Excellent Grade units display minimal signs of previous use with only very ligh
