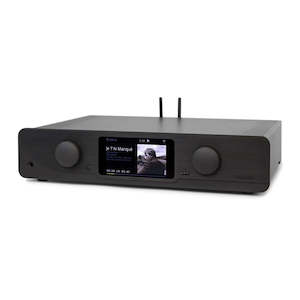

ATOLL-SDA200 SIGNATURE STREAMING AMP BLACK *NEW*
Whether it is listening to high-definition streaming music, locally from your network, from a USB key, a hard drive, Bluetooth®, or your favourite internet radio station, Atoll's SDA200 Signature “All-in-one" is totally adapted to modern streaming needs. It embeds a high-performance converter and can be used as a pure source or as a preamplifier. The SDA200 Signature is additionally equipped with the amplifier part of the IN200 Signature.
- 8 mm brushed black aluminium front.
- 2 toroidal transformers of 340 VA each.
- Total of capacitors: 65 800 µF.
- 2×120Wrms / 8Ω.
- MOS-FET dual push-pull power stage.
- High-quality, shielded MKP technology link capacitors.
- Filtering capacitors: 8×6800 μF high quality, low ESR specific for ATOLL.
- BURR-BROWN PCM1792 converter:
– Dynamic: 129 dB.
– Signal/Noise ratio: 129 dB.
- 5″ TFT LED colour graphic display (800 480).
- Discrete component preamp stages without negative feedback in pure Class A.
- Analog volume management (switched resistors) that can be bypassed.
- Specific power supply dedicated to the audio stages.
- Specific power supply dedicated to the analogue digital audio converter.
- Accepted resolutions: PCM up to 24 bits/192 kHz and DSD64 and DSD128.
- Playback of audio files present on the network (DLNA and UPnP compatible) in a wired RJ45 or WiFi connection.
- Display of names, tags, resolutions and album covers.
- “Gapless" system (no cut between pieces).
- Ability to create playlists.
- USB-A file systems: FAT32, NTFS, EXT2/3/4.
- ATOLL “streamer" remote control supplied as standard.
- “ATOLL Signature 2" App (Android and IOS).
CONNECTIVITY
Inputs
2 Analog inputs – 2 coaxial S/PDIF (PCM1792 24 bits/192 kHz).
2 Toslink optical S/PDIF inputs (24 bits/192 kHz PCM).
2 USB-A inputs (1 front and 1 rear).
1 RJ45 network socket.
1 Bluetooth® receiver (antenna).
Outputs
Speakers.
1 Pre-out output.
1 Coaxial S/PDIF output.
1 Toslink optical S/PDIF output.
1 Trigger output 12V.
1 Headphone output on the front panel (Ø 6,35 mm – 1/4″).
1 Wi-Fi antenna (802.11b/g/n).
