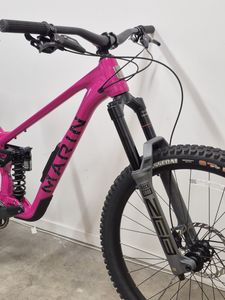

Marin Alpine Trail XR Large

The new Marin Alpine Trail Series 4 aluminum MultiTrac 2 LT frames feature mixed 29"/27.5" wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chainstay length, as well as run 29" rear wheels if desired. “Bear Box" downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seat post increases strength and is compatible with the latest dropper posts. "XR" = "Xtra Rad" at Marin, and like the XR models that have preceded the new Alpine Trail, we created a model for the more discerning rider. We focused our efforts on building a bike with high performance RockShox Ultimate-level suspension, a SRAM GX Eagle Lunar 12-speed drivetrain and DB8 4-piston brakes - all equipment that helps the rider level up, but without blowing the budget. Don't forget the Maxxis rubber and our proprietary CNC machined 35mm stem and matching Trail Bar. frame

All New Series 4 6061 Aluminum

front suspension RockShox Zeb Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset

rear suspension RockShox Super Deluxe Coil Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune, Spring Rates S/M- 350lbs, L/XL-450lbs

rim Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible hub rear Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H hub

front Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h spokes 14g Black Stainless Steel

derailleur rear SRAM GX Eagle Lunar 12-Speed shift lever SRAM GX Eagle Lunar MMX Mount crankset SRAM GX Eagle, 32T, 55MM CL, 170MM Length bottom bracket SRAM DUB MTB 73

chain SRAM NX Eagle

cassette SRAM GX 1275 T-Type 10-52T brakes front SRAM DB8 4-Piston Hydraulic Disc, HSC 200mm Rotor brakes rear SRAM DB8 4-Piston Hydraulic Disc, HSC 200mm Rotor brake levers SRAM DB8 Hydraulic

handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back stem Marin CNC, 35mm Length, 35mm Bar Bore grips Marin Grizzly Lock-On headset FSA Custom, Adjustable HTA Design seatpost TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm saddle Marin Speed Concept extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head
