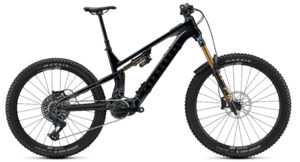

Commencal Meta Power SX Avinox Signature Pure Black 2026
The META POWER SX AVINOX combines power, liveliness, handling and manoeuvrability. It's designed for those who want long rides with a powerful and torquey motor. Complete with 160mm of travel, the suspension benefits from our Virtual Contact System (VCS) linkage. Low in weight and with a 27.5" rear wheel, this bike is responsive and particularly agile.
The META POWER SX AVINOX SIGNATURE is a high-end build with FOX Factory suspension and an electronic SRAM GX Eagle T-Type drivetrain.
• Featuring the FOX 36 Factory fork with 160mm travel. Kashima-coated stanchions and a Grip X2 cartridge make it highly tuneable and offers unmatched performance. The rear shock is a FOX X Float Factory, delivering the perfect balance of grip and comfort.
• Braking is handled by SHIMANO with a pair of Deore XT 4-piston brakes. The feel is direct and consistent thanks to 203mm rotors.
• DT SWISS HX 1700 wheels are paired with DT SWISS 370 hubs. This combo is ready to take the hits.
• Reliable and responsive, the SRAM GX Eagle T-Type drivetrain is ideal for e-MTB riding. Robust and versatile, it adapts to any situation. Specifications
- Frame
META POWER SX AVINOX, 160 mm travel
29''-27.5'', Alloy 6066, triple butted tubes, T4, T6. Bolu bearings
- Motor
AVINOX
120 Nm peak torque with a 1,000 W boost mode, and 105 Nm / 850 W in normal operation
- Battery
AVINOX
600 W on S, 800 W on M / L / XL, Fully integrated main battery
AVINOX 508w Fast Battery charger
- Display
AVINOX BD100, ON/OFF switch, assist mode level, battery charge level
Switch: AVINOX BC100, mode switch, walk assist, light switch
- Shock
FOX Float X Factory
230 x 60 mm, 2-postion (open/firm) lever, HSC, LSC, HSR, LSR, 0.4ci Spacers
- Fork
FOX 36 Factory 160 mm
29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset
- Headset
ACROS ZS56 / ZS66
Alloy cups, stainless steel & sealed bearings
- Stem
RIDE ALPHA 40
40 mm extension, 31.8 mm
- Handlebar
RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
- Grips
ODI LONGNECK V2.1
Soft compound, single clamp, black
- Brakes
SHIMANO XT, 4 pistons
Rotors: GALFER SHARK, 6-bolt, 203 mm
- Shifters
SRAM AXS POD
12s
- Chain guide
RIDE ALPHA
32-34t
- REAR DERAILLEUR
SRAM GX EAGLE T-TYPE
12s
- Crankset
E13 HELIX RACE, 155 mm crank arms, Bosch
Chainring: SRAM CR T-TYPE, 34t, BCD 104
- Chain
SRAM GX EAGLE T-TYPE
12s, Flat Top
- Cassette
SRAM X0 EAGLE T-TYPE
12s, 10-52t
- Rims
DT SWISS HX1700
Rear: 27.5'', 28h, 30 mm inner width - Front: 29'', 28h, 30 mm inner width
- Hubs
DT SWISS 350 Hybrid
Rear: 28h, sealed bearings, 12 x 148 mm, SRAM XD - Front: 28h, sealed bearings, 15 x 110 mm
- Spokes/nipples
DT SWISS Hybrid 1
Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black
- Tyres
Rear: MAXXIS MINION DHRII 27.5'' - Front: MAXXIS MINION DHRII 29'
Rear: 27.5x2.50WT 3C MaxxTerra / EXO Casing / TR - Front: 29x2.50WT 3C MaxxTerra / EXO Casing / TR
- Seat post
ONE UP V3
31.6 mm, 150 mm on S, 180 mm on M and 210 mm on L/XL
- Saddle
WTB SOLANO
142 x 240 mm, Medium
- Weight
- kg / - lbs
Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
- Pedals included
CRANKBROTHERS Stamp 1
- Colour
Pure Black
Shiny Finish
- Accessories
Down tube protector, chainstay protector, seatstay protector, FOX 38 specific fender, FIDLOCK base, diameter reducer 34,9mm Technical informations
- Bicycle type
E-bike - Enduro / Freeride
- Frame material
AL 6066 T6
- Frame weight
4,795 kg / 10,57 lb
- Rear travel
160mm
- Shock length/stroke
230x60mm
- Recommended SAG
29-32% / 17,5-19mm
- Piggy back shock compatible
Yes
- Shock bushings
Included - 20x10mm
- Recommended/max. fork height
576mm / 5
