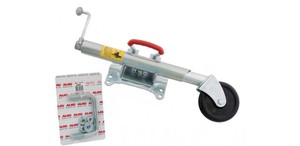

350kg Trailer Jockey Wheel 140mm - Swivel + 100mm x 75mm 'U' Bolt Kit
Heavy Duty Large Locking Pin Swivel Bracket Trailer / Caravan Jockey Wheel with "U" Bolt Mounting Kit
TRAILTECH / AL-KO
Heavy duty swivel type jockey wheel suitable for trailers and caravans.
Includes 75mm x 85mm 'U' Bolt Kit to secure Jockey Wheel.
FEATURES:
Corrosion Resistant Zinc Plated Steel Construction Jockey Wheel
Solid Rubber Jockey Wheel
Large Locking Pin Swivel Bracket
Extends from 18cm to 56cm long (from centre of swivel bracket)
Static Load Rating: Approx. 350kg
BASIC DIMENSIONS:
Overall: 580mm long x 150mm wide x 130mm high
Wheel extends from 180mm to 560mm long as measured from centre of the swivel bracket
Wheel: 140mm dia x 44mm wide.
Mounting Holes (centre to centre): 185mm x 60mm between inner holes / 110mm between outer holes / 90mm between inner and outer holes
BRAND NEW PRODUCT
12month Return to Base Warrant...
