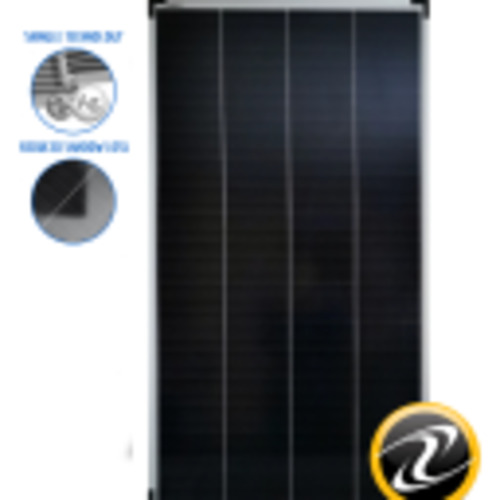

SHINGLED PERC MONO - 160W SOLAR PV PANEL
Available on request. Please use enquiry form on the page, to order this product. Price May Differ from the one shown here.
Shingled PERC is a new breakthrough in solar cell technology. This innovative technology for interconnecting the cell minimizes electrical losses from cell to cell which results in higher module efficiency. This high power, high-density Shingled PERC module are very robust and suited to mobile vehicles including Caravan, RV and Boating. The busbar-free structure means only a small proportion of cells are not exposed to sunlight allowing for better performance when shaded.
Features : - PERC Solar cells with shingle technology - Reinforced frame with aluminum angle - 35mm Frame with a support surface of 1.2mm thickness
Advantages : - More Power : Reduced optical and electrical losses. Shadowing also has less effect due to PERC Shingled Cell design. - Seamless Soldering : Shingled Soldering is a new proprietary Module Encapsulation Technology, achieved using Silver Conductive Adhesive instead of BusBars. - Compact : High efficient cells means smaller modules especially when used in Caravan, RV and Marine applications. - Reduced system cost : High component efficiency reduces floor space, BOS, transportation and operation costs at production level. - Stability : Enhanced reliability and stability. Significantly reduces hot spot effect. - Reliability : Avoids cell crack caused by traditional welding process; the components are flexible and compressible, suitable for a variety of harsh environments. - Performance : 10 year product warranty on materials and workmanship, 25 years linear power output warranty. Specification Peak Power (Pmax) : 160.00W Max Power Voltage (Vmp) : 21.49V Max Power Current (Imp) : 7.57A Open Circuit Voltage (Voc) : 26.27V Short Circuit Current (Isc) : 7.62A Module Efficiency : 19.36% Max Systems Voltage (V) : 1000V Pmax Temperature Coefficient (W/°C) : - 0.41% Voc Temperature Coefficient (V/°C) : - 0.31& Isc Temperature Coefficient (A/°C) : 0.05% Nominal Operatings Cell Temp (NOCT) : 48±2 C Operating Temp : -40 to 85C
Mechanical Characteristics Cell Type : PERC Shingled MONO Cell Qty : 156 CELL Dimensions : 1233x670x35mm Weight : 10Kg Front Glass : 3.2mm High Transmission, Low Iron, Termpered Glass Surface Load : 5400Pa Junction Box : IP65 Rated Output Cables : MC4, 4mm2 900mm
