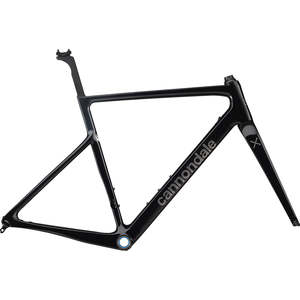

SuperSix EVO SE / CX Spares 2022 - 2024

CANNONDALE SUPERSIX EVO SE / CX SPARES 2022 - 2024

SPECIFICATIONS

Head Tube - UPR: 1-1/8 in LWR: 1.5 in

Headset - IS42 Top IS 52 Bottom 45/36

Bottom Bracket: Type / Width - PF30A/83mm

Front Derailleur - Braze-on

Seat Post: Dia./Binder - 27 KNØT/Internal Wedge/ 6 Nm

Minimum Seat Post Insert - 65 mm

Maximum Seat Post Insert - 44cm/190mm 51cm/230mm, 54cm/237mm 56cm/260mm, 58cm/268mm

Tyre Size x Maximum Width - 700x44mm (measured)

Brakes: Mount Type / Min / Max Rotor Diameter - RR: Flat Mount/140mm/160mm FT: Flat Mount/140mm/160mm

Axles: Type / Length - FT:100x12mmx1.0P Speed Release,119mm Overall Length RR: 142x12mmx1.0P Speed Release, 167mm Overall Length

Ai Offset - Rear wheel: 6mm Offset to NDS

Fork Offset - 55mm

Maximum Weight Limit: Total - 150kg
