Shuttle WWN03 Expansion Kit LTE/4G Module with SIM Holder
The WWN03 includes a riser adapter card, two antennas with cables to support 4G/LTE modules plus a SIM card for the mobile network.
4G/LTE module is not included. Suggest SX9954 Features
The Shuttle XPC accessory WWN03 allows compabitle Shuttle XPC slim Barebones to be upgraded with an LTE/4G function for mobile network. The LTE card will occupy the 2.5" bay, so you have to use an M.2 SSD as mass storage device. The required LTE/4G card in M.2-3042 format and an activated Nano SIM card is not included in the scope of delivery. Specifications

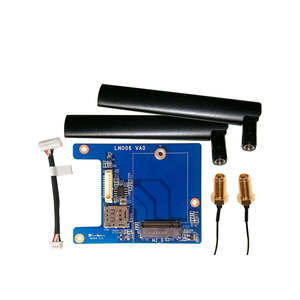

- Contents:
- Daughterboard LN006 with USB cable connector
- Fastening screw for M.2/LTE card (two-parts: bolt with screw)
- 3x screw to install LN006 in a 2.5" bay
- 2x LTE/4G antennas
- 2x antenna cables with toothed lock washer and screw nut
- Quick installation guide
- Adapter card:
- USB connector to connect to the mainboard
- M.2 socket supports one LTE/4G module M.2-3042 Key B
- supports one SIM card in Nano format
- Two external antennas:
LTE/4G dipole omnidirectional antenna
Multi-band: supports EU frequency bands (800, 1800, 2600 MHz) for GSM/UMTS/LTE and the following frequency ranges: 704~960, 1428~1575, 1720~2170, 2400~2690 MHz
Colour: black
Length overall: 135.7 mm
Dimensions of the antenna body: 114.8 mm x 20.1 mm
Impedance: 50 Ohm
Voltage Standing Wave Ratio (VSWR)
