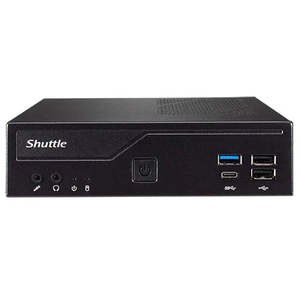

Shuttle XPC DH610 LGA1700 DDR4 M.2 Slim Computer Barebone PC
The Shuttle XPC Slim series DH610 supports Intel 12th Gen LGA1700 processors. With Intel new performance hybrid architecture and UHD graphics 700 series integrated, the model computes performance along with the potential for powering AI deployment. Support up to three displays via one HDMI 2.0b and two DisplayPort for display productivity and flexibility. Moreover, the model provides comprehensive connectivity with multiple ports, including four USB 3.2 Gen1 (Including one Type-C), four USB 2.0, two RS232, Intel 2.5GbE Intel 1GbE LAN, and two M.2 expansion slots. DH610 can perform a reliable operation suitable for Office, Digital Signage, Kiosks, and other Multi-platform AI deployment.
• DH610
• Intel LGA1700 CPU Support
• Intel H610 Express Chipset
• 2x DDR4 SO-DIMM Slots
• 1x HDMI, 2x Display Port, 1x M.2 2280 Type M key, 1x M.2 2230 Type E key
• 4x USB3.2 Gen1, 4x USB2.0, 1x 3.5mm in/out, 1x RS232, 1x RS232/RS422/RS485, 2x RJ45 Specifications
• Form Factor: 1.3L chassis
• Processor: Supports Intel 12 & 13th Gen - Alder Lake-S LGA1700 Socket Core i3 / i5 / i7 / i9, Pentium, Celeron 65W processor
• Memory: 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 up to 3200 MHz
• Video Output: HDMI 2.0 x 1 DisplayPort x 2, Triple video outputs 4K playback (Dual channel memory recommended) Integrated in CPU
• Storage Interface: SATA 6.0Gb/s interface
• Onboard Connectors: 1x 4pin fan connector, 1x VGA (For PVG01 use), 1x 1x4 pin USB header (For WWN03 use), 1x SATA connector w/power, 1x Front audio header, 1x Auto power on header, 1x RS232 voltage switch
• Chipset: Intel H610 Express Chipset
• Audio: Realtek High Definition Audio
• Ethernet: Dual Intel Gigabit Lan: 1.0 GbE Lan / 2.5 GbE Lan, 10Mb/s,100Mb/s,1Gb/s Operation, Support Wake-On-LAN function, Support Teaming function
• Front Panel:
2x USB 3.2 Gen1 ports (Include Type C x1)
2x USB 2.0 ports
1x Microphone-In
1x Line-Out
1x Power-On button
1x Power LED
1x HDD LED
• Back Panel:
2x RJ45 Gigabit LAN Network Ports w/LED (1× 2.5 Gbit, 1× 1 Gbit)
1x HDMI port, 2x Display Port
2x USB 3.2 Gen1 Ports
2x USB 2.0 Ports
1x Serial RS232
1x Serial RS232/RS422/RS485
1x External 4-Pin Header
1x DC-in
2x Wireless Antenna fixture, 1x Kensington lock
• Drive Bays: 1x 2.5" HDD / SSD bay
• Expansion Slot: 1x M.2 2280 Type M Key Socket, 1x M.2 2230 Type E Key Socket
• Dimensions: 190(L) x 165(W) x 43(H) mm
Optional Accessories incl. WiFi, Rackmounting, LTE/4G:
See https://www.shuttle.eu/en/products/slim/dh610 for.
Package Contents:
• Shuttle DH610 Barebone
• XPC Multilanguage Quick User Guide
• XPC DVD Driver
• VESA Mount
• VESA Screw Pack
• Power Cord
• Thermal Grease
• HDD Screw pack
• 120W adapter
Please note: CPU, RAM, SSD, OS not included! Simply add CPU, RAM, SSD & OS to suit your needs!
Shuttle XPC DH610 Datasheet (Click here)
Warranty: 36 Months
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period. All warranties are return to base unless otherwise specified.
