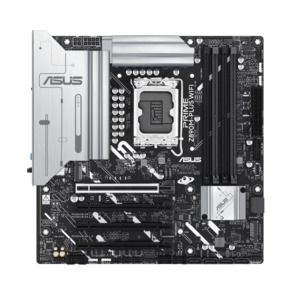

Asus Prime Z890M-Plus WIFI-CSM Motherboard
Prime Z890M-PLUS WIFI-CSM ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel?? Core??? Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890M-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It???s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. Model PRIME Z890M-PLUS WIFI-CSM
News & Updates
Please visit our GLOBAL website to check and download the latest updates.
CPU Supports Intel?? Core??? Ultra Processors(Series 2), LGA1851
Supports Intel?? Turbo Boost Technology 2.0 and Intel?? Turbo Boost Max Technology 3.0
Refer to https://www.asus.com/support/download-center/ for CPU support list.
Intel?? Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel?? Z890 Chipset Memory 4 x DIMM slots, max. 192GB, DDR5
Support up to 8666 MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
DIMM Fit
Supports Intel?? Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III(AEMPIII)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x DisplayPort
1 x HDMI??? port
1 x USB 20Gbps port (USB Type-C??) supports DisplayPort video output
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
Supports max. 4K@120Hz as specified in DisplayPort 1.4.
VGA resolution support depends on processors' or graphic cards' resolution.
While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. Expansion Slots Intel?? Core??? Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
Intel?? Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slots (support x1 mode)
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports
Intel?? Core??? Ultra Processors (Series 2)
M.2 1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel?? Z890 Chipset
M.2 2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2 3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
Intel?? Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5. Ethernet 1 x Realtek 2.5Gb Ethernet
ASUS LANGuard Wireless & Bluetooth Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth?? v5.4
Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
The Bluetooth?? version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. USB Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C?? with DP Alt mode)
1x USB 10Gbps port (1 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C??)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C?? power delivery output: max. 5V/3A
USB E1 port, USB
