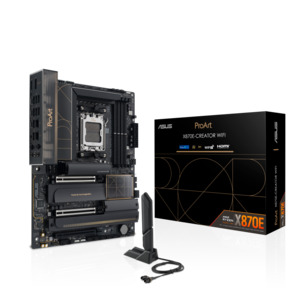

Asus Proart X870E-Creator WIFI AM5 AMD Motherboard
The ProArt X870E-Creator WiFi empowers creators of all levels by maximising the performance of the latest AMD Ryzen 9000, 8000 and 7000 Series processors with 16 2 2 team power stages, DDR5 slots, PCIe?? 5.0 and lightning-fast connectivity including dual USB4, 10G and 2.5G Ethernet, and WiFi 7.
This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
Model ProArt X870E-CREATOR WIFI
CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Refer to www.asus.com for CPU support list. Chipset AMD X870E Memory 4 x DIMM slots, max. 192GB, DDR5
Support up to
8000 MT/s(OC) with Ryzen 9000 Series Processors,
8000 MT/s(OC) with Ryzen 8000 Series Processors,
8000 MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory
configuration, for more information refer to www.asus.com for memory support list.
Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. Graphics 1 x HDMI port
2 x USB4 (40Gbps) ports support USB Type-C display outputs
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports 4K@60Hz as specified in HDMI 2.1.
Supports max. 8K@60Hz as specified in DisplayPort 1.4.
VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen 9000 & 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes )
AMD Ryzen??? 8700 & 8600 & 8400 Series Desktop Processors
1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5) 1 & total bandwidth of x8, PCIEX16(G5) 2 will be disabled)
AMD Ryzen 8500 & 8300 Series Desktop Processors
1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5) 1 & total bandwidth of x4, PCIEX16(G5) 2 will be disabled)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
When you use both PCIEX16(G5) 1 and PCIEX16(G5) 2, they will run at x8 each.
PCIEX16(G5) 2 shares bandwidth with M.2 2 slot. When M.2 2 is enabled, PCIEX16(G5) 1 will run x8, and PCIEX16(G5) 2 will run at x4.
- To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2 1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2 2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen??? 8000 Series Desktop Processors
M.2 1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2 2 slot is not supported
AMD X870E Chipset
M.2 3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2 4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
PCIEX16(G5) 2 slot shares bandwidth with M.2 2.
AMD RAIDXpert2 Technology
Ryzen??? 7000 series processors: PCIe RAID 0/1/10
Ryzen 8000 series processors: PCIe RAID 0/1
Ryzen??? 9000 series processors: PCIe RAID 0/1/5/10
X870/B850/X670/B650/A620 chipset: SATA RAID 0/1/10 Ethernet 1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard Wireless & Bluetooth Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth v5.4
Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's webs
