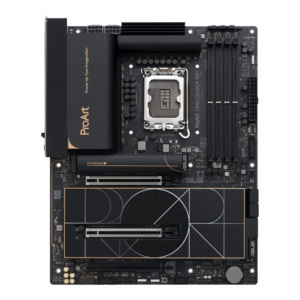

Asus Proart Z890-Creator WIFI Motherboard (3 Years Warranty)
The ProArt Z890-CREATOR WIFI empowers creators of all levels by maximizing the performance of the latest Intel?? Core??? Ultra Processor (Series 2) processors with 16 1 2 2 team power stages, DDR5 slots, PCIe?? 5.0 and lightning-fast connectivity including dual Thunderbolt??? 5 ports, 10G and 2.5G Ethernet, and WiFi 7.
This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A subtly designed I/O cover provides a sleek and sophisticated look while concealing the premium connectors within.
Model ProArt Z890-CREATOR WIFI
News & Updates
Please visit our GLOBAL website to check and download the latest updates.
The Thunderbolt 5 features on this motherboard are only supported in Windows 11. To ensure the best experience, please install Windows 11 and update to the latest version to access the latest inbox drivers. CPU Support Intel?? Core??? Ultra Processors (Series 2), LGA1851
Supports Intel?? Turbo Boost Technology 2.0 and Intel?? Turbo Boost Max Technology 3.0
Refer to https://www.asus.com/support/download-center/ for CPU support list.
Intel?? Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel?? Z890 Chipset Memory 4 x DIMM slots, max. 256GB, DDR5
Support up to 9066 MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)
Dual channel memory architecture
Supports Intel?? Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Support DIMM Fit
Support DIMM Flex
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of site or visit https://www.asus.com/support/download-center/.
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x HDMI??? port
2 x Intel?? Thunderbolt??? 5 ports (USB Type-C??) support DisplayPort and Thunderbolt??? video outputs
1 x Intel?? Thunderbolt??? 4 ports (USB Type-C??) support DisplayPort and Thunderbolt??? video outputs
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports 4K@60Hz as specified in HDMI 2.1
Supports up to 2 x 8K@60HZ (DSC mode) 1 x 4K@60HZ monitors with DP in.
Supports up to 1 x 8K@60HZ (DSC mode) 1 x 4K@60HZ monitors without DP in.
For resolution support please check DisplayPort 2.1 specs. ThunderboltTM 5 bandwidth is limited by DisplayPort??? 2.1 with up to 77.4 Gbit/s. We recommend chain-connecting the monitors using verified Thunderbolt??? cables.
In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. Expansion Slots Intel?? Core??? Ultra Processors (Series 2)
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
Intel?? Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. Storage Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
Intel?? Core??? Ultra Processors (Series 2)
M.2 1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2 2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel?? Z890 Chipset
M.2 3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2 4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
M.2 5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Intel?? Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
M.2 5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2 5 slot is operating, PCIe 4.0 x16 slot will be disabled. Ethernet 1 x Marvell?? AQtion 10Gb Ethernet
1 x Intel?? 2.5Gb Ethernet
ASUS LANGuard Wireless & Bluetooth Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
