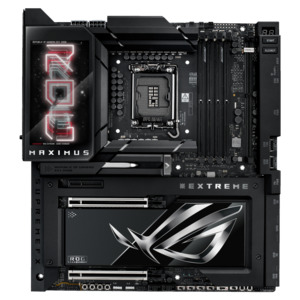

Asus ROG Maximus Z890 Extreme Motherboard (3 Years Warranty)
The ROG Maximus Z890 Extreme is the ultimate expression of cutting-edge motherboard technology and performance. Discover the upper limits of Intel?? Core??? Ultra Series 2 processors, DDR5 modules, PCIe?? 5.0 graphics cards, NVMe storage, USB connectivity, Thunderbolt??? and more ??? all wrapped up in a sleek package featuring a full-color 5-inch long LCD screen that can deliver vibrant imagery or live system stats to suit your personal tastes
News & Updates
Please visit our GLOBAL website to check and download the latest updates.
The Thunderbolt 5 features on this motherboard are only supported in Windows 11. To ensure the best experience, please install Windows 11 and update to the latest version to access the latest inbox drivers. CPU Support Intel ?? Core??? Ultra Processors (Series 2) , LGA1851
Supports Intel ?? Turbo Boost Technology 2.0 and Intel ?? Turbo Boost Max Technology 3.0
Refer to https://www.asus.com/support/download-center/ for CPU support list.
Intel ?? Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel ?? Z890 Chipset Memory 4 x DIMM slots, max. 192GB, DDR5
Support up to 9200 MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual Channel Memory Architecture
Supports Intel ?? Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Supports DIMM Flex
DIMM Fit
NitroPath DRAM Technology
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x HDMITM port
2 x Intel ?? Thunderbolt??? 5 ports (USB Type-C ?? ) support DisplayPort and Thunderbolt??? video outputs
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
Supports up to 1 x 8K@60HZ(DSC mode) 2 x 4K@60HZ monitors, It is recommended to chain-connect the monitors using a verified Thunderbolt??? cable.
For resolution support please check DisplayPort 2.1 specs.bandwidth limited by DisplayPort??? 2.1 with up to 77.4 Gbit/s.
In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
VGA resolution support depends on processors' or graphic cards' resolution.
While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. Expansion Slots Intel ?? Core??? Ultra Processors(Series 2)
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)
Intel ?? Z890 Chipset
1 x PCIe 4.0x4 slot
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
M.2 3 & M.2 4 share bandwidth with PCIEX16(G5) 2. When M.2 3 is enabled, PCIEX16(G5) 1 will run x8 & PCIEX16(G5) 2 will run x4. When M.2 3 & M.2 4 are enabled, PCIEX16(G5) 1 will run x8 & PCIEX16(G5) 2 will disabled.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage Total supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports
Support Intel ?? Core??? Ultra Processors(Series 2)
M.2 1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2 2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2 3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes)
M.2 4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)
Intel ?? Z890 Chipset
DIMM.2 1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2 2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Intel?? Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
M.2 3 & M.2 4 share bandwidth with PCIEX16(G5) 2. When M.2 3 is enabled, PCIEX16(G5) 1 will run x8 & PCIEX16(G5) 2 will run x4. When M.2 3 & M.2 4 are enabled, PCIEX16(G5) 1 will run x8 & PCIEX16(G5) 2 w
