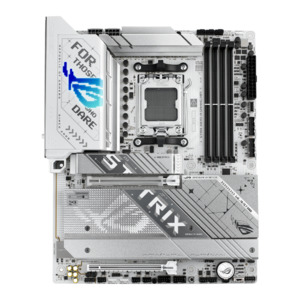

Asus ROG STRIX X870-A Gaming WIFI AM5 AMD Motherboard
AMD X870 ATX motherboard with 16 2 2 power stages, Dynamic OC Switcher, Core Flex, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, two USB4?? ports, USB 10Gbps Type-C with PD 3.0 up to 30W, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.
Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors
Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance
ROG Strix Overclocking technologies: Dynamic OC Switcher, Core Flex, and PBO Enhancement
Robust Power Solution: 16 2 2 power solution rated for 90A per stage with dual ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design: Massive heatsinks bridged to the VRMs with high-conductivity thermal pads and an integrated I/O cover
Latest M.2 Support: Two onboard PCIe?? 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with substantial cooling solutions
Abundant Connectivity: Dual USB4 Type-C ports, USB 20Gbps Type-C front-panel connector, one USB 10Gbps Type-C rear I/O port with PD 3.0 up to 30W and USB Wattage Watcher, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI port
High-Performance Networking: On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet
DIY Friendly Design: PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield
Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
Renowned Software: ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Refer to www.asus.com for CPU support
list. Chipset AMD X870 Memory 4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000 MT/s(OC) with Ryzen
9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered
Memory "
Dual channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
Supported memory types, data rate
(speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list
under the Support tab of site or visit
https://www.asus.com/support/.
Non-ECC, un-buffered DDR5 memory supports
On-Die ECC function. Graphics 1 x DisplayPort
1 x HDMI port
2 x USB4 (40Gbps) ports support USB
Type-C display outputs
Please refer to AMD CPU specifications.
Supports max. 8K@30Hz as specified in
DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI
2.1.
Supports max. 4K@60Hz as specified in
DisplayPort 1.4a
VGA resolution support depends on
processors' or graphic cards' resolution. Expansion Slots AMD Ryzen??? 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen??? 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen??? 9000 & 7000 Series Desktop Processors
M.2 1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2 2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen??? 8000 Series Desktop Processors
M.2 1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2 2 slot (Key M), type 2280/22110 (Not supports)
AMD X870 Chipset
M.2 3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2 4 slot (Key M), type 22
