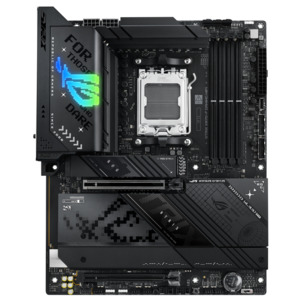

Asus ROG STRIX X870-F Gaming WIFI AM5 AMD Motherboard
The ROG Strix X870-F Gaming WiFi is built to dominate with AMD Ryzen??? 9000 Series Desktop Processors. Its advanced power design and AI solutions ensure peak performance, while dual USB4?? ports, WiFi 7 and high-speed DDR5 slots provide cutting-edge connectivity. This motherboard delivers the power and speed essential for elite gaming and the demands of advanced AI PC applications.
News & Updates
Please visit our GLOBAL website to check anddownload the latest updates.
CPU AMD Socket AM5 for AMD Ryzen??? 9000 &
8000 & 7000 Series Desktop Processors
Refer to www.asus.com for CPU support
list. Chipset AMD X870 Memory 4 x DIMM slots, max. 192GB, DDR5
Supports up to 8000 MT/s(OC) with Ryzen???
9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered
Memory "
Dual channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO???)
ASUS Enhanced Memory Profile (AEMP)
Supported memory types, data rate
(speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list
under the Support tab of site or visit
https://www.asus.com/support/.
Non-ECC, un-buffered DDR5 memory supports
On-Die ECC function. Graphics 1 x DisplayPort
1 x HDMI??? port
2 x USB4 ?? (40Gbps) ports support USB
Type-C ?? display outputs
Please refer to AMD CPU specifications.
Supports max. 8K@30Hz as specified in
DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI
2.1.
Supports max. 4K@60Hz as specified in
DisplayPort 1.4a
VGA resolution support depends on
processors' or graphic cards' resolution. Expansion Slots AMD Ryzen??? 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen??? 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen??? 9000 & 7000 Series Desktop Processors
M.2 1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2 2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD Ryzen??? 8000 Series Desktop Processors
M.2 1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2 2 slot (Key M), type 2242/2260/2280/22110 (Not supports)
AMD X870 Chipset
M.2 3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2 4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen??? 9000 series CPU.
M.2 2 shares bandwidth with PCIEX16(G5). When M.2 2 is occupied with SSD device, PCIEX16(G5) will run x8 only.
M.2 3 shares bandwidth with PCIEX16(G4). When M.2 3 is occupied with SSD device, PCIEX16(G4) will be disabled.
M.2 2 will be disabled when using AMD Ryzen??? 8000 Series Desktop Processors. Ethernet 1 x Intel ?? 2.5Gb Ethernet
ASUS LANGuard Wireless & Bluetooth Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.
Bluetooth ?? v5.4
Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
The Bluetooth ?? version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. USB Rear USB (Total 12 ports)
2 x USB4 ?? (40Gbps) ports(2 x USB Type-C ?? with DP Alt mode)
6 x USB 10Gbps ports (5 x Type-A 1 x USB Type-C ?? with up to 30W PD Fast-charge)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 20Gbps conn
