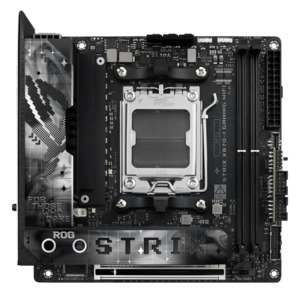

Asus ROG STRIX X870-I Gaming WIFI AM5 AMD Motherboard
The ROG Strix X870-I Gaming WiFi integrates cutting-edge technology into a sleek mini-ITX form factor, enhanced by the ROG Strix Hive II for streamlined control. It features PCIe 5.0 slots for graphics and storage, dual-channel DDR5 slots and robust power delivery for top-tier gaming and heavy workloads. Meanwhile, advanced cooling solutions maintain peak performance, and WiFi 7 ensures ultra-fast connectivity. This platform delivers the power and connectivity that advanced AI PC applications demand. CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Refer to https://www.asus.com/support/download-center/ for CPU support list. Chipset AMD X870 Memory 2 x DIMM slots, max. 96GB, DDR5
Supports up to
8400 MT/s(OC) with Ryzen 9000 Series Processors,
8600 MT/s(OC) with Ryzen 8000 Series Processors,
8000 MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM "
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list under the Support tab of site or visit https://www.asus.com/support/download-center/.
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. Graphics 1 x HDMI port
2 x USB4 (40Gbps) ports support USB Type-C display outputs
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports 4K@60Hz as specified in HDMI 2.1.
Supports max. 4K@60Hz as specified in DisplayPort 1.4a
VGA resolution support depends on processors' or graphic cards' resolution. Expansion Slots AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2 1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2 1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2 2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
2 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1
Install ROG FPS Card to support 2 x SATA 6Gb/s ports. Ethernet 1 x Intel 2.5Gb Ethernet
ASUS LANGuard Wireless & Bluetooth Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
Bluetooth v5.4
Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications." USB Rear USB (Total 10 ports)
2 x USB4 (40Gbps) port(s)(2 x USB Type-C)
5 x USB 10Gbps port(s) (4 x Type-A 1 x USB Type-C)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 3 ports)
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
USB Type-C power delivery output: max. 5V/3A
ROG STRIX HIVE II(Total 2 ports)
2 x USB 10Gbps port ( 1 x Type-A 1 x USB Type-C)
ROG FPS Card (Total 3 ports)
2 x USB 2.0 headers additional 3 USB 2.0 ports Audio ROG Strix Hive II Audio Features
- ROG Hyper-Grounding Technology
- ESS SABRE9260Q DAC
- Silver-plated audio jacks
- Dedicated audio PCB layers Back Panel I/O Ports 2 x USB4 (40Gbps)(2 x USB Type-C)
5 x USB 10Gbps port(s) (4 x Type-A 1 x USB Type-C, 1 port supports ROG STRIX HIVE II)
3 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
1 x BIOS FlashBack button
1 x C
