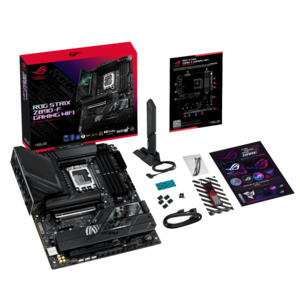

Asus ROG STRIX Z890-F Gaming WIFI Motherboard
With NPU boosting and cutting-edge AI solutions, the ROG STRIX Z890-F Gaming WiFi supports advanced AI-driven PC applications. Equipped with Thunderbolt 4, PCIe 5.0, and Polymo lighting, it delivers blazing-fast data transfers, unparalleled connectivity and a customisable aesthetic that can be either subtle or bold. Model
ROG STRIX Z890-F GAMING WIFI CPU
Intel Socket LGA1851 for Intel Core Ultra Processors (Series 2)
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Refer to https://www.asus.com/support/download-center/ for CPU support list.
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset
Intel Z890 Chipset Memory
4 x DIMM slots, max. 192GB, DDR5
Support up to 8600 MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
DIMM Fit
ASUS Enhanced Memory Profile III (AEMP III)
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of site or visit https://www.asus.com/support/download-center/.
Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Graphics
1 x DisplayPort
1 x HDMI port
2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 8K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
In DP alt mode, Only one USB Type-C port supports up to UHBR20 at a time.
VGA resolution support depends on processors' or graphic cards' resolution.
While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. Expansion Slots
Intel Core Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage
Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Ultra Processors (Series 2)
M.2 1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2 2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2 3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2 4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2 5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard Wireless & Bluetooth
Wi-Fi 7
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth v5.4
Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. USB
Rear USB (Total 14 ports)
2 x Thunderbolt 4 (2 x USB Type-C)
6 x USB 10Gbps ports (4 x Type-A 1 x USB Type-C 1 x USB Type-C?? with up to 30W PD Fast-charge)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports
Front USB (Total 9 ports)
1 x USB 20Gbps connector (1 x USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C power delivery output: 5V/3A
USB Type
