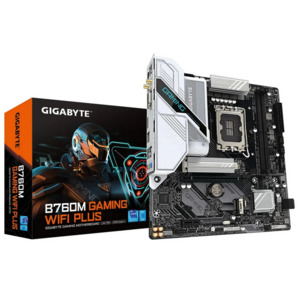

Gigabyte B760M Gaming WIFI Plus DDR5 Intel Socket LGA1700 mATX Motherboard
GIGABYTE B760M GAMING WIFI PLUS DDR5 MOTHERBOARD (Rev. 1.1)
- Supports Intel Core 14th/13th/12th processors
- Unparalleled Performance: Hybrid 6 2 1 Phases Digital VRM Solution
- Dual Channel DDR5: 2 DIMMs XMP Memory Module Support
- Next Generation Storage: 2 PCIe 4.0 x4 M.2 Connectors
- EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
- Fast Networks: 2.5GbE LAN & Wi-Fi 802.11ac
- Extended Connectivity: Rear USB-C 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design
The best VRM design ever built with the highest quality components.
• 6 2 1 Phases digital PWM Low RDS(on) MOSFETs
• Support the latest CPUs, and deliver enhanced system performance and ultimate hardware scalability.
Unlock DDR5
DDR5 Overclocking Up to 8000 and Beyond
GIGABYTE is offering a tested and proven platform with extreme memory performance boost.
Memory overlocking and XMP profile support may vary depending on hardware configuration.
Please see the complete validated memory support list. Product features may vary by model.
Shielded Memory Routing
All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.
Impedance Optimized Topology
By optimizing memory trace width, length and style from HPC simulation to actual implementation, overall impedance is lowered between CPU memory controller and memory modules to achieve higher DDR5 speed.
Low Signal Loss PCB
Server grade mid-loss or low-loss PCB material is chosen to lower signal loss inside PCB and maintain DDR5 high speed signal transmission.
Unlock DDR5 Voltage
GIGABYTE Exclusive DDR5 Circuit Design Increases DDR5 memory overclocking performance and capability by transforming Native DDR5 memory module to Overclocked DDR5 memory.
Secure Mode
Motherboard provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.
• Unlocks Native DDR5 PMIC secure mode into programmable mode and controls Native DDR5 voltage with wide range.
• Supports all PMIC vendors for maximum compatibility
Memory overclocking capability will vary based on users' hardware configuration
Achieve Higher DDR5 Memory Frequencies with Ease
DDR5 XMP Booster function provides optimized pre-defined profiles, based on memory IC and PMIC vendor analysis, for effortless performance enhancement and elimination of manual configuration for overclocked DDR5 memory kits.
DDR5 MEMORY UPGRADE involves DDR5 memory overclocking, overclocking capability depends on users' hardware configuration.
Accelerate instantly
Boost memory performance instantly.
Automate input
No need to manually configure multiple memory parameters like clock, voltage, and timings.
Streamline overclocking
Easily overclock Native and XMP 3.0 DDR5 memory to higher frequencies.
Integrate database
Built-in database of pre-tuned profiles for different memory IC vendors.
Maximize DDR5 performance with your memory settings
XMP 3.0 User Profile empowers you to optimize your memory settings and achieve the best performance for your system.
SPD Re-defined or retrieve from database
Users can define two empty SPD profiles and transfer them to another computer.
Performance Simulation
Simulate memory performance quickly by inputting clock and timing parameters.
Save/Load Profile
Save and load memory profiles for online sharing.
Boost non-overclockable DDR5 memory frequency
Increase the frequency of non-overclockable DDR5 memory.
One-click Clear Profile
Reset memory settings conveniently.
Thermal
Enlarged Surface MOSFET Heatsink
Enlarged Surface Design of MOSFET Heatsink greatly improves heat dissipation.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
802.11ac Wi-Fi
The onboard 802.11
