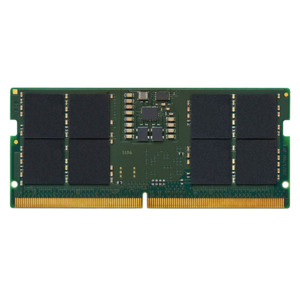

Kingston 16GB 5600MT/s DDR5 Non-ECC CL46 SODIMM 1Rx8

This document describes ValueRAM's KVR56S46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8,memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

SPECIFICATIONS

CL(IDD) 46 cycles

Row Cycle Time (tRCmin) 48ns(min.)

Refresh to Active/Refresh 295ns(min.)

Command Time (tRFCmin)

Row Active Time (tRASmin) 32ns(min.)

UL Rating 94 V - 0

Operating Temperature 0 o C to 85o C

Storage Temperature -55 o C to 100 o C

FEATURES

Power Supply: VDD = 1.1V Typical

VDDQ = 1.1V Typical

VPP = 1.8V Typical

VDDSPD = 1.8V to 2.0V

On-Die ECC

PCB: Height 1.18in (30.00mm)

RoHS Compliant and Halogen-Free
