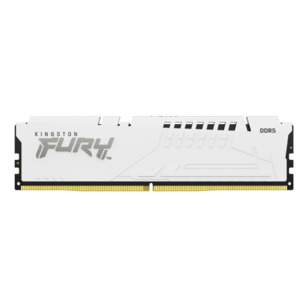

Kingston 32GB 6000MT/s DDR5 CL36 DIMM (2x16GB) Fury Beast Expo (White)

KF560C36BWE2K2-32

32GB (16GB 2G x 64-Bit x 2 pcs.)

DDR5-6000 CL36 288-Pin DIMM Kit

SPECIFICATIONS

CL(IDD) 40 cycles

Row Cycle Time (tRCmin) 48ns(min.)

Refresh to Active/Refresh 295ns(min.)

Command Time (tRFCmin)

Row Active Time (tRASmin) 32ns(min.)

UL Rating 94 V - 0

Operating Temperature 0°C to 85°C

Storage Temperature -55°C to 100°C

Kingston FURY KF560C36BWE2K2-32 is a kit of two 2G x 64-bit (16GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. Each module kit supports AMD EXPO v1.1 and Intel Extreme Memory Profiles (Intel XMP) 3.0. Total kit capacity is 32GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 36-44-44 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FEATURES

Power Supply: VDD = 1.1V Typical
VDDQ = 1.1V Typical
VPP = 1.8V Typical
VDDSPD = 1.8V to 2.0V
On-Die ECC
Height 1.37inch (34.9mm), w/heatsink
