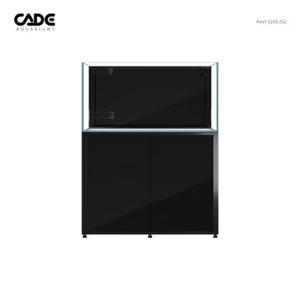

CADE Reef S2 1200

The CADE Reef S2 is our range of customisable rimless, sump filtered saltwater Aquariums designed specifically for the advanced reef aquarist.

The Reef S2 has been expertly crafted to enable the aquarist to build a truly personalised Reef Aquarium system without limitation. The Reef S2 combines functional design and unique sophistication to produce a system that both compliments contemporary home decor whilst fulfilling all of your Reef keeping requirements.

Designed in Australia, the CADE Reef S2 range represents the perfect foundation to build your Reef.

System Specifications

TANK

- 1200x700x600 (LxWxH)
- Capacity (Inhabitable): 432L / 114 gal
- System Capacity (Total): 512L / 135 gal
- 12mm Opti Clear Glass Tank
- Open Top / Rimless Tank
- Laser hed Logo
- Perfect Cut Silicone Edges
- Highest Quality German Whacker Silicone
- Double Laminated Black Glass Rear Panel
- White Tank Base Panel
- Concealed 'Twin Intake Weir' (Unique to CADE)
- Super Fine Adjustable Sanking Gate Valve' & Emergency Drains
- Extra large 44.4L / 11.7 gal Gravity Fed ATO (Auto Top Off) System
- Jump Net Cover (NEW)

CABINET

- 1200x700x900 (LxWxH)
- 100% Waterproof Cabinet (Aluminum)
- Chiller/Accessories Space
- Chiller recommendation: TECO TK500 / TK1000 / Halia HS-90A
- Cable Management & Dosing Pump Shelf
- Dedicated Controller Management (Right Side Door)
- Sump Maintenance Access (Left Side Door)
- Power 16x Plug Power Boards with on/off Switches
- Adjustable Castor Feet for Cabinet Levelling
- Hidden Adjustable Rust Proof Door Hinges
- Hidden Magnetic Door Closers
- Cabinet Supplied Assembled with Sump Installed

SUMP & PLUMBING

- Newly Designed Glass Sump Filtration
- Filter socks 4" (x2)
- Macro Algae Chamber (Removable)
- Media Baskets (x4) for Bio and Chemical Media
- Pre Fabricated Screw Connect Plumbing (No silicone required)
- Reactor Water Feeds (x2)
- Chiller Water Feed (x1)
- One Way Return Valve

Reef S2 Tank

The CADE Reef Tank is a rimless open top design boasting super high clarity Opti-Clear glass with flat polished edges constructed using the highest quality German Whacker silicone. The CADE logo is laser hed within the front glass panel and serves as your guarantee of authenticity.

Silicone is robotically applied producing perfect gaps and a razor sharp minimalist finish. All Pro Reef S2 tanks measure 600mm high and 700mm wide with space split between 600mm of inhabitable tank widthand the remaining 100mm allocated to the 'Backdrop Water Management System'.

The Reef S2 utilizes space at the rear of the tank for a ‘multi-purpose water management system.’ This feature splits the rear and front of the tank via a glass panel positioned 10cm off the rear of the tank. This panel consists of 2x 5mm laminated glass panels with the black background colour embedded between the 2 sheets of glass ensuring there is no possibility of discoloration and minimising the risk of scratches.

The CADE Reef S2 'Weir' found on the left side of the 'multifunction water management system' is unique in that it offers both surface and low level water intakes enabling superior uptake of heavier suspended solids that fail to reach regular surface intakes on regular weirs. Having an extra weir intake also serves as an emergency back up should one intake become blocked by a carpet anemone for example making it an important safety feature of the system.

Inside the weir water is delivered to the sump via 2 pipes, a main down flow pipe and an additional emergency overflow pipe which assists flow to the sump filter should the main pipe become blocked. The water intake system has been carefully designed to ensure it operate silently without further modification. The CADE Reef S2 also has the ability to choose between 2 water levels, a high and low level. To set the water height simply adjust the gate valve in the sump to allow flow through only the low level main down flow pipe (standard water level), or through both the low and high level down flow pipe to set it to the higher level. Alternatively the fine adjustment Gate Valve will also allow the user to adjust a water height at any height in between. This is a great option to have and is particularly handy for those that may want to add a wave maker to their system and require a lower water level in their Aquarium.

The Reef S2 weir is neatly concealed off with a flip top cover that has provisions for power cable management which keeps it all very neat and provides easy access for maintenance
