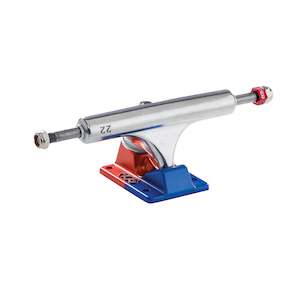

Ace Trucks AF1 Raw/Blue Orange Annodized

Ace Trucks AF1 Raw/Blue Orange Anodized

Sold as a Set (2 Trucks)

The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.

Size Guide:

- 22- 7.75"
- 33- 8.0"
- 44- 8.25"
- 55- 8.5"
- 60- 8.75"
- 66- 9.0"
- 77- 9.6"
- 80- 10.0"

• Hanger width: 5.6" (143mm)
• Truck height: 2.1" (53mm)
• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method
• True T6 heat-treated baseplates and hangers
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Patent pending rethreading axle nuts - no more damaged axle ends!
• Durable Hand-poured 96a urethane pivot bushings for better response.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall - 91a hardness
• Bottom Bushing: Bottom 14mm tall - 86a hardness
• Machine-faced hanger ends for precise bearing contact.
