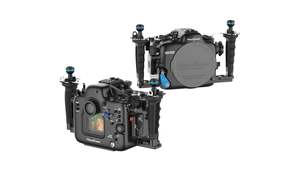

Canon EOS R6 Mk III - Nauticam NA-R6III Housing - 17345
Instruction Manual coming soon
Compatible lenses:
- RF Lenses with RF Lens Gear System II (PN: 19630 ~ 19637)
- EF Lenses with Canon mount adaptor EF to EOS R
Zoom/focus gear for EF lenses are MOD items
Canon Control Ring/Drop-in with V-ND Filter mount adaptor is unsupported What’s in the box
- NA-R6III Housing
- Housing Cap
- 2 x Plugs for Optical Fibre Cable Mount
- Housing O-ring, lubricant, O-ring remover
- 2x Handles with mounting balls and handle brackets
- CR2032 Battery (preinstalled for moisture alarm and vacuum system)
- Allen Wrench Set
- Housing carry bag and shoulder strap Main Features
- N120 Port Lock II with blue lever (Support to install Extension/Port and lock automatically when the port lock lever is closed)
- Rotary housing lock, same as NA-R6II
- Dedicated RF mount Lens REL lever
- Double Lever for M-Fn and REC on the front right side
- AF-ON Lever on the rear right side, Playback Lever on the rear left side.
- 1x M10 threaded hole (mounting points for external monitor)
- 12x 1/4-20 threaded holes (for optional accessories) Housing O-rings
- 90137 Housing o-ring (I.D.=170mm, C.S.=2.5mm)
Optical Trigger
- 26305 Mini Flash trigger for Fujifilm/Canon
- 26321 TTL Flash Trigger for Canon
26216 Universal Optical Fiber Cable is required. Electronic Trigger
- 25017 M14 6 pin bulkhead for Canon system
- 25020 Canon hotshoe plug to a M14 Nikonos bulkhead (x and ground connection only) Recommended Accessories Housing Mounting options
- 17959 Housing Mounting Ball with 1/4" Screws
- 25221 M10 strobe mounting ball for housing
- 25224 M10 strobe mounting ball for housing (with hole for using with lanyard)
- 25218 Mounting Ball Set for Tripod
Lanyard
- 25413 27cm lanyard with 2 snap hooks Viewfinder
- 32211 Nauticam Full Frame Straight Viewfinder 32°/ 1:1
- 32212 Nauticam Full Frame Straight Viewfinder 40°/ 0.8:1
- 32213 Nauticam Full Frame Angle Viewinder 32°/ 1:1
- 32214 Nauticam Full Frame Angle Viewinder 40°/ 0.8:1
- 87213 Reverse Angled Viewfinder for EMWL (40°/ 0.8:1）
- 87214 Reverse Straight Viewfinder for EMWL (40°/ 0.8:1）
- 87215 Reverse Angled Viewfinder for EMWL (32°/ 1:1）
- 87216 Reverse Straight Viewfinder for EMWL (32°/ 1:1）
32212/32214 is preferred. Surface USB-PD Power bank
- 26325 USB-C Bulkhead with USB-C Connector
- 26326 M24-M16 Adaptor for use with 26325 HDMI OUTPUT
1) Required accessories for HDMI 2.0 Cable System
- 25086 M24 adaptor for HDMI 2.0 cable (incl. tightening tool)
- 25099 M24A2R200-M28A1R170 HDMI 2.0 Cable (for NA-α1/GH6/A9III to use with Ninja V housing) (TBD)
Compatible Monitor Options
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
- 17922S Nauticam Atomos Ninja V-S Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable) with Atomos AtomX SDI Module
2) Required accessories for HDMI 1.4 Cable System
- 25033 Standard HDMI bulkhead with M16 thread
- 26326 M24-M16 Adaptor for use with 26325
- 25100 HDMI (D-A) 1.4 Cable in 200mm length for NA-a1/FX3/GH6 (for connection from HDMI bulkhead to camera) (TBD)
25033 is included in 17923 monitor housing
Compatible Monitor Options
- 16611 Nauticam 7" G7 UW ULTRAHD Monitor (4K HDMI, 2K SDI input, excl. cables)
- 16612 Nauticam 7" T7 UW ULTRAHD Monitor (HDMI 1.4 input, excl. cables)
- 25047 HDMI (D-D) cable in 800mm length (for connection between HDMI bulkheads)
25047 is required for use with 16611/16612 monitor housing
- 17927 NA-Shinobi II Housing for Atomos Shinobi II 5.2" Monitor with HDMI 1.4 input
17927 includes 25033, 25038, 25100.
- 17922 Nauticam Atomos Ninja V Housing for Atomos Ninja V 5" 4Kp60 4:2:2 10-bit Reorder/Monitor/Player (excl. HDMI 2.0 cable)
- 25082 HDMI 1.4 Cable for Ninja V Housing in 0.75m Length (for connection from Ninja V housing to HDMI Bulkhead)
25082 is required for use with 17922 monitor housing
