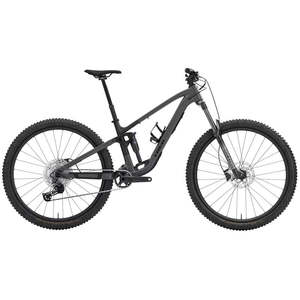

Trek Fuel EX 5 Gen 7 MTB
Flow, tech or steeps – the Fuel is up to get down. This trail ripper features ultra-adjustable geometry that lets you choose your own adventure, whether you’re after a stoic trail tamer, rowdy MX ride or enduro-ready beast. Three build options and endless tweaks mean you can get a ride that’s fine-tuned for your style and stomping grounds. Wherever the trail leads you, the Fuel is ready to send.
The Fuel EX 5 is an aluminium trail bike built for total versatility wherever you ride. It comes with a RockShox Recon Silver fork and X-Fusion Pro 2 rear shock, Tubeless Ready wheels, a 12-speed Shimano Deore drivetrain and a TranzX dropper post, so you're ready for anything. Adapt, rip, repeat
Only you can define your perfect trail bike – that's why Fuel is available in three adjustability-packed configurations. Get do-it-all capability with EX, go pop-happy with MX or charge through it all with LX. Adjustable leverage rate
Want more bottom-out resistance without giving up small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage rate. Zero stack integrated headset
With a ZS standard headset, you've got loads of options for aftermarket upgrades, including angle adjust or anodised colours. Storage and accessory mounts
Stash ride essentials with in-frame storage on all Fuel models – both carbon and alloy. Plus, top tube accessory mounts let you load up even more. Fresh frame design
The Fuel's new frame gives you loads of room for long dropper posts, bigger shocks, frame bags and more. Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
weight M - 17.02 kg / 37.53 lbs (with TLR sealant, no tubes) max tyre size Frame - 29x2.50", Fork - See manufacturer max. chainring size Max - 34T (oval – 32T) Min - 30T (oval – 32T) seatpost Size - S - TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm, Size - XL, L, M - TranzX JD-YSI34, 170mm travel, internal routing, 34.9 mm rotor size Max brake rotor sizes – Frame - 203 mm, min 180 mm, Fork - see fork manufacturer weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). brake rotor Shimano RT10, CenterLock, 180 mm fork Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel shock X-Fusion Pro 2, 2-position damper, 205 mm x 60mm front hub Shimano TC500 alloy, CentreLock, 110x15 mm thru axle rear hub Shimano TC500 alloy, CentreLock, 148x12 mm thru axle rear skewer Bontrager Switch thru-axle, removable lever rim Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve - Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve tire part Bontrager TLR sealant, 180 ml/6 oz rim strip Bontrager TLR shifter Shimano Deore M6100, 12-speed rear derailleur Shimano Deore M6100, long cage crank Shimano MT512, 30T ring, 55 mm chain line, 170 mm length bottom bracket Shimano BB-MT501 BSA cassette Shimano Deore M6100, 10-51, 12-speed chain Shimano Deore M6100, 12-speed saddle Bontrager Verse Short, stainless steel rails handlebar Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width grips Trek Line Comp, nylon lock-on stem Bontrager Comp, 31.8 mm, 7-degree, 35 mm length headset FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown brake Shimano hydraulic disc, MT201 lever, MT200 calliper
