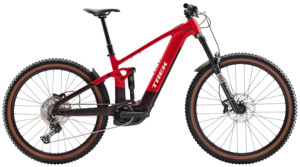

Trek Rail+ 5 Gen 5
Huge boost. Massive adventures. The Rail is a burly e-MTB that has its heart set on epic rides that take you far, far beyond the beaten track. With plenty of front and rear travel, tons of torque and a massive 800 Wh battery, this beast is built to tackle big miles and even bigger terrain. Peak to peak adventures? Sounds like a blast.
The Rail 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminium frame partners with a RockShox Deluxe Select RT shock and Psylo Gold RC fork (160 mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post and tubeless-ready Bontrager Line TLR 30 wheels for charging into anything. Bosch Performance Line CX motor: 100 Nm upgrade ready
Bosch Performance Line CX sets the standard for eMTB performance with 85 Nm of torque out of the box, but can be tuned all the way up to 100 Nm and 750 W of power using the Bosch eBike Flow app. The Bosch smart system also has intelligent eMTB mode with Extended Boost that automatically adjusts the amount of assist based on the terrain. New RIB 2.0
Removable Integrated Battery (RIB 2.0) makes it easy to remove your battery for more convenient charging or travelling, and you don’t have to worry about dropping it thanks to a secondary safety catch. Bosch Mini Remote
The compact, ergonomic Mini Remote lets you easily change assist level, activate Walk mode, or turn on optional lights, all without moving your hand off the handlebar. Plus, it's wireless and connects with your System Controller via Bluetooth Mixed wheel size
You get a 29" front wheel for monster truckin' over stuff, with a smaller 27.5" wheel out back for getting rowdy. Adjust the suss for full send
Adjust the leverage rate with just a flip of a chip. Ride it in the Less progressive setting for a plusher feel perfect for rugged trails with square-edge bumps. Flip it to More progressive when you're hitting big features and don’t want to bottom-out, or when you want to run a coil shock. Bosch System Controller
The System Controller gives you a of your assist mode and battery level without distracting you from the ride. It's integrated into the top tube so it's out of the way but still easy to see with LED indicators. It also connects to the eBike Flow app via Bluetooth for accessing ride stats and performing system updates. Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most. frame Alpha Platinum Aluminium, UDH, Boost148, 12 mm thru axle, 160 mm travel fork RockShox Psylo Gold RC, DebonAir spring, Isolator RC damper, tapered steerer, 44 mm offset, Boost 110, 15 mm Maxle Stealth, 160 mm travel shock RockShox Deluxe Select RT, 205 mm x 65mm hub front Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle hub rear Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle skewer rear Bontrager Switch thru-axle, removable lever brake rotor Shimano RT66, 6-bolt, 203 mm tyre Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40" tyre part Bontrager TLR sealant, 180 ml/6 oz rim strip Bontrager TLR max tyre size Frame - 27.5x2.60", Fork - See manufacturer charger Bosch standard 2A, 230V, smart system controller Bosch System Controller BRC3100, smart system motor Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC) shifter Shimano Deore M6100, 12-speed rear derailleur Shimano Deore M6100, long cage crank arm E thirteen E spec Plus, 160 mm length cassette Shimano Deore M6100, 10-51, 12-speed chain Shimano Deore M6100, 12-speed pedal VP-536 nylon platform max. chainring size 1x - 36T saddle Bontrager Verse P3, steel rails seatpost TranzX JD-YSI34, 100 mm travel (S) / 170mm travel (M, L, XL), internal routing, 34.9 mm handlebar Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width grips Bontrager XR Trail Comp, nylon lock-on stem Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length head set Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible brake Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper rotor size Max brake rotor sizes – Frame - 220 mm, Fork - see fork manufacturer mudguard Trek 27.5" custom fender weight M – 25.28 kg/55.74 lb (with TLR sealant, no tubes) weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). frame features Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustab
