Brand: BluePrint Engines Manufacturer's Part Number: PSLS3760CTF Crate Engine Family: Chevy LS Actual Engine Displacement: 6.2L/376 Crate Engine Cylinder Head Material: Aluminum Engine Block Material: Aluminum Advertised Compression Ratio: 10.7:1 Assembled: Yes Engine Balance: Internal Cam Style: Hydraulic roller, OE roller Rear Main Seal Style: 1-piece Intake Manifold Included: Yes Intake Manifold Style: Fuel Injection Cylinder Heads Included: Yes Carburetor Included: No Throttle Body Included: Yes Distributor Included: No Oil Pan Included: Yes Valve Covers Included: Yes Timing Cover Included: Yes Water Pump Included: Yes Harmonic Balancer Included: Yes Flexplate Included: No Flywheel Included: No Air Cleaner Included: No Spark Plugs Included: Yes Spark Plug Wires Included: Yes Computer Included: No Wiring Harness Included: No Supercharger Included: No Remanufactured: No Quantity: Sold individually. Notes: This retrofit Gen IV engine has a 58x reluctor wheel and 4x cam sensor. It has 3.622 in. stroke nodular iron crankshaft, 6.098 in. connecting rods with 150,000 psi bolts and hypereutectic pistons. Engine is rated at 530 hp with 495 lbs. ft. of torque. Engine uses a Corvette style balancer.

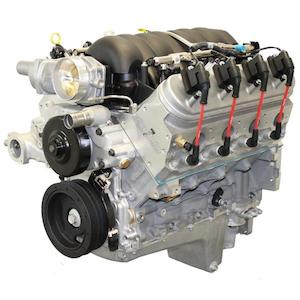

BluePrint Engines Chevy LS 376 C.I.D. 530HP EFI Retrofit Dressed Long Block Crate Engines
BluePrint Engines Chevy LS 376 c.i.d. 530 hp EFI Retrofit dressed long blocks are for those wanting maximum horsepower and durability. Every BluePrint engine is dyno-tested for proven results and is backed by their exclusive 30-month/50,000-mile warranty.
Specs and components for the Chevy LS 376 crate engines include:
New GM 6.2L block
Nodular iron rotating assembly
Forged connecting rods
Hypereutectic pistons
Aluminum cylinder heads
-- 68cc chamber
-- 2.165 in. intake/1.600 in. exhaust valves
Roller camshaft
--.612 intake/.585 exhaust lift
-- 225 intake/238 exhaust duration at.050
-- 113 degree lobe separation
Compression ratio 10.7:1
LS3 intake manifold
Fuel injection included
Coil packs
Oil pan
Valve covers
Timing cover
Water pump
Harmonic balancer
Spark plugs and wires
