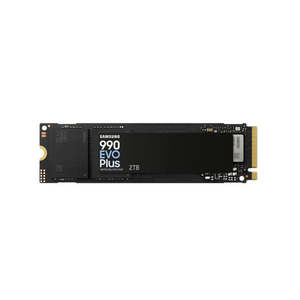

Samsung 990 Evo Plus 2Tb Pcie Gen5 Nvme Ssd 7250Mbs 6300Mbs

SAMSUNG 990 EVO PLUS 2TB PCIE GEN5 NVME SSD 7250MB/S 6300MB/S R/W 1000K/1350K IOPS 1200TBW 1.5M HRS V-NAND TLC AES 256-BIT ENCRYPTION

S

Cool power through your day
Optimized efficiency, extended performance. The nickel-coated controller helps increase MB/s per Watt by 73%, achieving the same power level and thermal control with less power consumption. Stay focused on work or play with no overheating or battery life worries.

Extra space. Extra speed.
Harness the full power of your drive with enhanced Intelligent TurboWrite 2.0. Process massive data fast and breeze through heavy graphics with an enlarged TurboWrite region, now available in 4TB capacity.

Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimization tools help ensure a great SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Bringing innovations to life
For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

SPECIFICATIONS

Application: Client PCs
Interface: PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0

Performance: Up to 7,250 MB/s (Performance may vary based on system hardware & configuration)

Sequential Write: Up to 6,300 MB/s (Performance may vary based on system hardware & configuration)

Weight: Max 9.0g Weight

FEATURES

Application: Client PCs

Rated Capacity: 2,000GB (1GB=1 Billion byte by IDEMA)
Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor: M.2 (2280)
Interface: PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0
Weight: Max 9.0g Weight
Storage Memory: Samsung V-NAND TLC
Controller: Samsung in-house Controller
Cache Memory: HMB(Host Memory Buffer)

TRIM Support: Supported
S.M.A.R.T Support: Supported
GC (Garbage Collection): Auto Garbage Collection Algorithm
Encryption Support: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
WWN Support: Not supported
Device Sleep Mode Support: Yes

PERFORMANCE

Sequential Read: Up to 7,250 MB/s
Sequential Write: Up to 6,300 MB/s
Random Read (4KB, QD32): Up to 1,000,000 IOPS
Random Write (4KB, QD32): Up to 1,350,000 IOPS
(Performance may vary based on system hardware & configuration)

ENVIRONMENT

Average Power Consumption (system level): Average: Read 4.6 W / Write 4.2 W
Power Consumption (Idle): Typical 60 mW
Power Consumption (Device Sleep): Typical 5 mW
Allowable Voltage: 3.3 V ± 5 % Allowable voltage
Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
Operating Temperature: 0 - 70°C Operating Temperature
Shock: 1,500 G & 0.5 ms (Half sine)
(Actual power consumption may vary depending on system hardware & configuration)

SOFTWARE

Management SW
Magician Software for SSD management

PACKAGE CONTENTS

1 x
