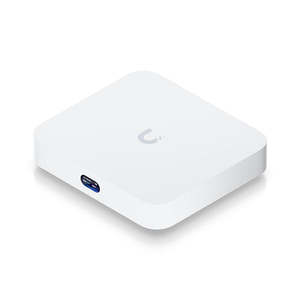

Ubiquiti Cloud Gateway Ultra Multi Wan Gbe Rj45 Ports

UBIQUITI CLOUD GATEWAY ULTRA, MULTI-WAN, (4) GBE RJ45 PORTS, (1) 1/2.5 GBE RJ45 PORTS, USB TYPE C, 5V DC/3A, 100–240V AC, MAX 6.2W

FEATURES

Redundant WAN with failover and load balancing

WiFi QoS with UniFi APs

Application, domain, and country-based QoS

Application and device type identification

Additional internet failover with LTE Backup

Internet quality and outage reporting

Next-generation security

Application-aware firewall rules

Signature-based IPS/IDS threat detection

Content, country, domain, and ad filtering

VLAN/subnet-based traffic segmentation

Full stateful firewall

Advanced networking

License-free SD-WAN

WireGuard, L2TP and OpenVPN server

OpenVPN client

OpenVPN and IPsec site-to-site VPN

One-click Teleport and Identity VPN

Policy-based WAN and VPN routing

DHCP relay

Customisable DHCP server

IGMP proxy

IPv6 ISP support

LEDs

Ethernet

Green: link/activity

Application Requirements

Mobile app

UniFi iOS™: Version 10.12.0 and later

UniFi Android™: Version 10.11.2 and later

SPECIFICATIONS

Dimensions

141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")

Weight

520 g (1.1 lb)

Enclosure material

Polycarbonate

Hardware

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

System memory

3 GB DDR4

On-board storage

16 GB eMMC

Management interface

Ethernet, Bluetooth

Networking interface

LAN: (4) GbE RJ45 ports

WAN: (1) 1/2.5 GbE RJ45 port

IDS/IPS throughput

1 Gbps

Measured with iPerf3 on a DHCP network. Performance
may be reduced with PPPoE depending on ISP
implementation.

Power method

USB type C (5V DC/3A)

Supported voltage range

100–240V AC

Max. power consumption

6.2W

LCM display

0.96" status display

Button

Factory reset

Ambient operating temperature

-10 to 40° C (14 to 104° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

PACKAGE CONTENTS

1 x
