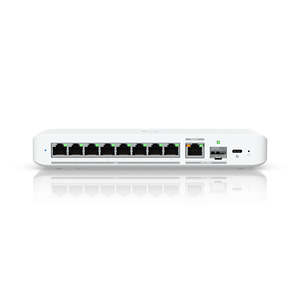

Ubiquiti Flex Flexible 8 Port Gbe Switch

UBIQUITI FLEX 2.5G, FLEXIBLE, 8-PORT 2.5 GBE SWITCH,10 GBE RJ45/SFP COMBINATION UPLINK PORT, POWERED WITH USB-C /POE ADAPTER,

SPECIFICATIONS

Dimensions

212.9 x 76 x 33.5 mm

(8.4 x 3 x 1.3")

Port Layout

2.5 GbE RJ45: 8

(2.5G/1G/100M/10M)

10 GbE RJ45: 1

(10G/5G/2.5G/1G/100M)

10G SFP : 1

Form Factor

Compact Desktop, wall, DIN, magnetic

Performance

Switching Capacity

60 Gbps

Total Non-Blocking Throughput

30 Gbps

Forwarding Rate

45 Mpps

Supported VLANs

256

MAC Address Table Size

4,000

Layer 2 Features

STP & RSTP

Yes

Egress Rate Limit

Yes

Flow Control

Yes

Storm Control

Yes

Multicast & Broadcast Rate Limiting

Yes

Port Isolation

Yes

Port Mirroring

Yes

Jumbo Frames

Yes

Loop Protection

Yes

Hardware

Max. Power Consumption

14W with PoE input

14W with AC adapter input

Power Method

(1) USB Type-C, 5V DC, 3A

(1) PoE

Power Input Method

USB Input

PoE

Power Supply

AC/DC, external, 15W

Supported Voltage Range

4.8–5.2V DC/USB

44V–57V PoE

Management

Ethernet

Weight

395 g (0.87 lb)

Enclosure Material

Polycarbonate

Mount Material

Polycarbonate

Ambient Operating Temperature

-20 to 45° C (-4 to 113° F)

Ambient Operating Humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC

NDAA Compliant

Yes

Software

Application Requirements

UniFi Network: Version 9.0.114 and later

PACKAGE CONTENTS

1 x
