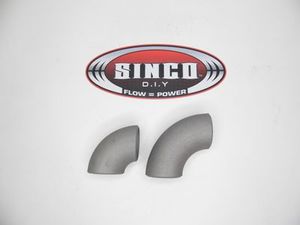

Steampipe Elbow 90 - 1 1/2"

Our range of steampipe bends and straight are sandblasted to a raw finish so you can weld them straight out of the box. From manufactures generally the steampipe elbows will have a black or clear paint on them to ensure they will not rust over time when stored, the fumes this paint creates when welding is very harmful if inhaled.

- Steampipe or Steamtube = Mild Steel
- For the use in manufacturing turbo manifolds
- Steam pipe elbow Sch. 40 (3.7mm thick)
- 41mm Inside diameter

- Short radius = 40mm CLR (What is CLR?)

- Long radius = 60mm CLR (What is CLR?)

Quick Reference:

1 1/4" steamtube bend =

Inside Diameter - 35mm

Outside Diameter - 42mm

1 1/2" steamtube bend =

Inside Diameter - 41mm

Outside Diameter - 48mm

2" steamtube bend =

Inside Diameter - 52mm

Outside Diameter - 60mm
