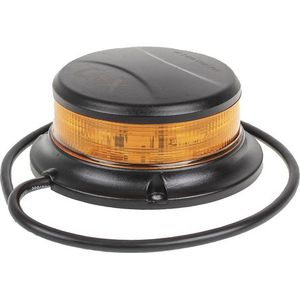

ACX2367 - OEX Slimline Amber Led Beacon Fixed Mount Class 1

Boost your vehicle’s visibility and safety with the OEX Slimline Amber LED Beacon (ACX2367). Designed for professional use, this fixed-mount, Class 1 beacon is engineered for long life, durability, and high performance—perfect for emergency, construction, and utility vehicles.

Key Features & Benefits:

Class 1 Certified: SAE J845, ECE R65 compliant for maximum legal visibility

Super-Slim Design: Easy installation in tight spaces (Height: 48mm)

Permanent Mount: Secure, fixed installation for reliability

High-Output LED: 32 amber LEDs with 10 selectable flash patterns, including simulated rotate

Weather & Vibration Resistant: IP67 waterproof, robust polycarbonate lens/housing

Multi-Voltage: Operates on 12V or 24V systems (10–30V rating)

Low Power Draw: Energy-efficient with minimal battery drain

Long Service Life: Over 50,000 hours

Two-Year Warranty: Built to last in tough conditions

Technical Specifications:

Part Number: ACX2367

Type: Lamp Revolving Strobe Combo

Brand: OEX

Unit: Each

Voltage: 12 or 24V (10–30V range)

LEDs: 32 Amber LEDs

Flash Rate: 10 selectable patterns (incl. simulated rotate)

Mounting: Permanent (Fixed Mount)

Beacon Style: LED

Environmental: IP67 rated (dust/waterproof)

Compliance: ECE R65, ECE R10 (EMC), SAE J845 Class 1

Lens Colour: Amber

Colour Output: Amber

Height: 48mm

Weight: 0.3kg

Insulated Return: No

Product Groups: Lighting >Emergency Lighting

Warranty: 2 Years

Wiring Instructions:

Blue wire: Earth

Red wire: Positive

Green wire: Momentarily touch to positive feed to change flash pattern

Note: Light is not insulated or above ground. Blue wire must also be grounded.

Features:
• Permanent Mount
• SAE J845 Class 1
• 10 selectable flash patterns incl. simulated rotation
• ECE R10 EMC compliant
• IP67 waterproof
• Two Year Warranty

UPC Code: 9335854024137

Ideal for: Emergency, service, fleet, construction, and utility vehicles.
