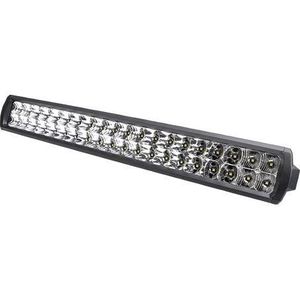

Drivetech 4x4 22 Inch 40 LED Dual Row Light Bar (9–36V)

Illuminate your path with the Drivetech 4x4 22" Dual Row LED Light Bar, engineered for serious off-road performance. Featuring 40 high-output LEDs and a combination beam pattern, this compact powerhouse delivers both exceptional distance and spread lighting—ideal for rugged New Zealand terrain. Rated IP68/IP69K, it's fully sealed against water and dust ingress and can handle high-pressure washing.

Whether you're running 12V or 24V systems, this bar is ready to go with multi-voltage capability (9–36V). Built with a durable die-cast aluminium housing, a tough polycarbonate lens, and sliding brackets for easy mounting, this unit is perfect for 4WD, UTV, agricultural, or heavy-duty applications.

Features:

Multivoltage (9–36V) – compatible with both 12V and 24V systems

Combination beam pattern – delivers both distance and spread

High light output: 19,040 Raw Lumens / 7,014 Effective Lumens

1 Lux at 518 metres

IP68/IP69K – fully waterproof and dust-tight

EMC compliant: EN IEC 55015 & EN 61547

Robust die-cast aluminium housing

Includes DT plug and sliding bracket mount

Polycarbonate lens for impact resistance

Specifications:

Voltage Range: 9–36V

Current Draw: 7.6A @ 13.2V

Power: 200W

LEDs: 40

Light Type: LED

Beam Pattern: Combination

Length: 558mm (22")

Width: 49.3mm

Height: 72mm

Weight: 1.46kg

Operating Temperature: -40°C to 145°C

Environmental Rating: IP68, IP69K

Lens Material: Polycarbonate

Mount Type: Sliding bracket

Connector: DT plug

Warranty: Two Years
