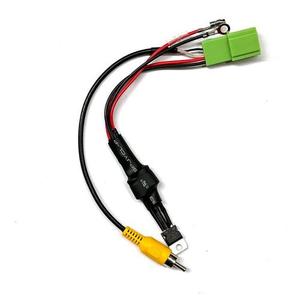

CAMERA RETENTION INTERFACE MAZDA 6 , CX5 2012 - 2016 (5 PIN)

Application:
Mazda
6 2012 - 2016 - 5 Pin Green Plug Only
CX5 2012 - 2016 - 5 Pin Green Plug Only
Specifications
• Input Voltage: 12V DC
• Output Voltage: 6V
Wiring Instructions
• Red Wire (Input Side) ->12V Input ( i.e Reverse light positive )
• Black Wire (Input Side) ->Common GND
• Yellow RCA male plug ->Camera input in to replacement head unit
