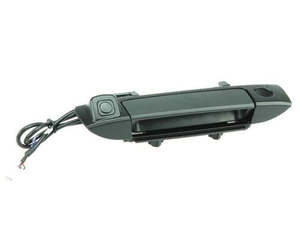

REVERSE CAMERA FORD RANGER / MAZDA BT50 2012 - 2020 (TAILGATE HANDLE REPLACEMENT
) (BLACK)
The CAM-FD9 is a Replacement Boot Handle Reverse Camera for the 2011 to 2020 Ford Ranger. The unit replaces the vehicles original boot handle with a camera built into the housing. The CAM-FD9 features a CMOS image sensor, 640 x 480 resolution and 170 degree viewing angle, this combination not only adds visual safety to the rear of the vehicle but also keeps the original aesthetics.
Product Specifications
CMOS Image Sensor
640 x 480 Resolution
Max Relative Aperture: 2.2 ( /- 5%)
Fixed Iris
Lens Construction: 3 elements 1 IR filter
Field Of View: D = 168 Degrees, H = 136 Degrees, V = 100 Degrees
Hard/Anti-Fog/IR-Cut Coating
NTSC/PAL Compatible
Video Output: 1.0V p-p 75ohm
Minimum Illumination: 0.1 Lux
Parking Lines Displayed
Operating Voltage: 12V DC (Negative Ground)
Current Consumption: 33mA @ 13.8V
Operating Temperature: -20 Degrees C to 70 Degrees C
Enhanced Performance In Low Light
Waterproof Rating: IP68
Applications
Ford Ranger 2011 - 2020
0
0
The CAM-FD9 is a Replacement Boot Handle Reverse Camera for the 2011 to 2020 Ford Ranger. The unit replaces the vehicles original boot handle with a camera built into the housing. The CAM-FD9 features a CMOS image sensor, 640 x 480 resolution and 170 degree viewing angle, this combination not only adds visual safety to the rear of the vehicle but also keeps the original aesthetics.
Product Specifications
CMOS Image Sensor
640 x 480 Resolution
Max Relative Aperture: 2.2 ( /- 5%)
Fixed Iris
Lens Construction: 3 elements 1 IR filter
Field Of View: D = 168 Degrees, H = 136 Degrees, V = 100 Degrees
Hard/Anti-Fog/IR-Cut Coating
NTSC/PAL Compatible
Video Output: 1.0V p-p 75ohm
Minimum Illumination: 0.1 Lux
Parking Lines Displayed
Operating Voltage: 12V DC (Negative Ground)
Current Consumption: 33mA @ 13.8V
Operating Temperature: -20 Degrees C to 70 Degrees C
Enhanced Performance In Low Light
Waterproof Rating: IP68
Applications
Ford Ranger 2011 - 2020
×
