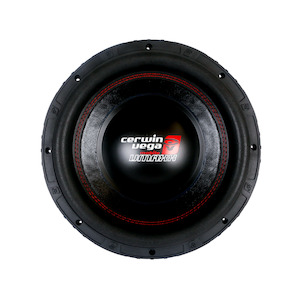

Cerwin Vega VMAX12D4 12″ High-Performance Subwoofer Dual 4Ω 1000W RMS / 2000W Max

Heavy Industrial Strength Aluminum Cast Frame. Black Design Patterned Treated Semi-Pressed Pulped Cone. Elevated Motor Structure Cooling Design. Oversized Spider. Black Coated Voice Coil for Higher Thermal Capability. Oversized Polished Black Chrome Finished Terminals. Polished Bumped Backplate. Klippel DA Optimized Motor and Suspension Symmetry. Features:

- 12" Dual 4-ohm High-Performance Subwoofer
- 1000W RMS/ 2000W MAX
- Mounting Diameter: 11.25"
- Mounting Depth: 6.6"
- Voice Coil: 3"
- Shorting Ring for lower Distortion.

Specifications:
– SPL (dB): 86.9
– Re(O) series : 2O/8O
– Qms: 4.49
– Qes: 0.48
– Qts: 0.44
– Fs(Hz): 32.9
– Vas(L): 44.2
– Cms(mm/N): 0.12
– Mms(g): 272.3
– Sd(m2): 0.053
– BL(T M): 25
– Xmax(mm): 14
– Pwr(W) NOM/MAX: 1000RMS / 2000W
– Displacement (ft3/L): 0.094 (2.67L) cu.ft / 3/L
– Mounting Depth: 5.98" (152) in. (mm)
– Mounting Diameter (inch/mm) 11.02" (280) in. (mm)
– Screw Hole Diameter: 0.26" (6.5) in. (mm)
– Total Diameter: 12.79" (325) in. (mm)
