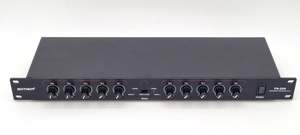

Sotnka FS-206 10 Way XLR Signal distributor (PA06-1)
Product Name: 10 Way XLR Signal distributor Model : FS-206 brand Name: Sotnka Color : Black Warranty: RTB 12 Months
FS-206 is Audio signal distributor with independent adjustment of the output level: 1 pair of in,5 pairs of out/1 pcs of in,10 pcs of out. Full-balanced input and output design.
For a signal to be allocated to the use of multiple pieces of equipment at the same time, the use of FS-206 can ensure that the output signal level consistent with the input signal will not be attenuated
FS-206 the independence of the settings is the level tuning function, allowing you to fine-tune the level of each channel output to meet the special needs of the drive.
Specifications:
Inputs Type: XLR female Impedance :50 KΩ balanced, 25 KΩ unbalanced Maximum input impedance: 21dBu balanced/unbalanced
Outputs Type: XLR male Impedance: 220Ω unbalanced
Frequency Response: 0.35 Hz-220KHz, 0/-3dB Signal-to-noise ratio: >100dBu, unweighted, 22Hz-22KHz Harmonic distortion: 0.04% (Typically @ 4dBu,1KHz,Gain)
Dimensions:483x44x137mm Weight: 1.6kg Power: AC220V/50Hz
0
0
FS-206 is Audio signal distributor with independent adjustment of the output level: 1 pair of in,5 pairs of out/1 pcs of in,10 pcs of out. Full-balanced input and output design.
For a signal to be allocated to the use of multiple pieces of equipment at the same time, the use of FS-206 can ensure that the output signal level consistent with the input signal will not be attenuated
FS-206 the independence of the settings is the level tuning function, allowing you to fine-tune the level of each channel output to meet the special needs of the drive.
Specifications:
Inputs Type: XLR female Impedance :50 KΩ balanced, 25 KΩ unbalanced Maximum input impedance: 21dBu balanced/unbalanced
Outputs Type: XLR male Impedance: 220Ω unbalanced
Frequency Response: 0.35 Hz-220KHz, 0/-3dB Signal-to-noise ratio: >100dBu, unweighted, 22Hz-22KHz Harmonic distortion: 0.04% (Typically @ 4dBu,1KHz,Gain)
Dimensions:483x44x137mm Weight: 1.6kg Power: AC220V/50Hz
×
