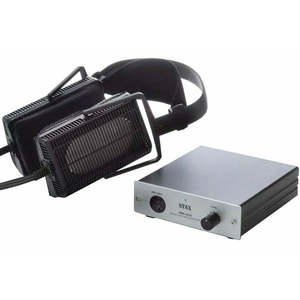

Stax SRS-3100 Earspeaker System
The a carefully curated package designed to introduce audiophiles and newcomers alike to the world of electrostatic headphones. This entry-level system offers a balance of exceptional sound quality and user-friendly features, making it an ideal first step into the world of Stax's renowned electrostatic technology.
The SR-L300 earspeaker employs new hand selected thin film diaphragm and tough stainless fixed electrodes. Rich deep bass response, delicate high frequency and soothing mid-range has been achieved in a balanced manner.
The SRM-252S is an exclusive driver unit (amplifier) for driving STAX ear speakers with PRO-bias 5 pins. Its line input can directly connect to the audio output terminal of CD player, portable audio player or DAC. The SRM-252S has a simple design that excels in sound quality employing the carefully selected newest high-voltage transistors and low-noise FETs. The output stage featuring the emitter-follower configuration reinforces the driving performance and also realised the smooth sound quality. Moreover, the class-A amplification throughout the stages with no coupling capacitors reproduces exhaustively the finest nuance of music.
Although the SRM-252S includes a class-A DC amplifier in a compact CD jacket size case, the internal heat is effectively dissipated through the chassis of aluminium extrusion material to improve the reliability over a long period of time. Also, the parallel output terminal was added to distribute the source signal so that a loud speaker may also be simultaneously used when source equipment has only a pair of output terminals.
Specifications SR-L300 Specifications
- Type: Push-Pull electrostatic oval sound element, Open-Air type enclosure
- Frequency response: 7 – 41,000Hz
- Electrostatic capacitance: 110pF (including attached code)
- Impedance: 145kΩ (including attached cable, at 10kHz)
- Sound pressure sensitivity: 101dB / input 100Vr.m.s. / 1kHz
- Bias voltage: 580V DC
- Ear pad: high-quality artificial leather (for SR-L300 only)
- Cable: parallel 6-strand, 2.5m full length, low-capacity special wide OFC cable
- Weight : 448g (including attached cable), 322g (without cable)
- Right/left channel indication: 'L' and 'R' indicated on the arc assembly (inside head spring), solid line (left) and dotted line (right) on cable
SRM-252S SPECIFICATIONS:
- Type : All-stage semiconductors, Low-noise dual FET input Class A operation, Pure balance DC amplifier configuration Earspeaker driver unit
- Frequency Response: DC to 35,000Hz with SR-207 (with SR-207)
- High Harmonic Distortion: Max 0.01% (1kHz at 100V r.m.s. )
- Gain: 58dB (x800)
- Input Terminal : 1 RCA with 1 RCA parallel out
- Rated Input Level: 125mV / 100V Outputs
- Max. Input Level: 30V (at minimum volume level)
- Input Impedance: 50KΩ(RCA)
- Max. Output Voltage: 280V r.m.s. (1kHz)
- Standard Bias Voltage: PRO 580V x 1
- Power Voltage Frequency: 117V (50Hz / 60Hz)
- Power Consumption: 4W DC12V
- Temperature & Humidity: 0 to 35ºC / 90% max. without condensation
- Dimensions: 5.2 (W) x 1.5 (H) x 5.2 (D) in
- Weight: 0.5kg
- Color: Silver Reviews
The joys of electrostatic headphone listening are many. The clarity, and lack of distortion coupled with the speed of the almost massless diaphragms in the 'phones make transients a fairly startling revelation! Be warned, this system is addicting and once you hear it, I can guarantee you that you will want to keep it. more..
