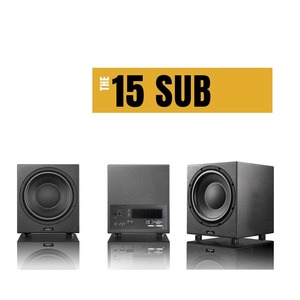

Ascendo- The15

Speaker type 15″ custom-built forward-firing woofer, 4" voice-coil, neodymium motor Xmax 18 mm excursion each direction (90 mm linear), voice coil remaining in homogeneous magnetic field, linear and lowest distortion Passive - Active Passive Recommended amplifiers 1Ch DSP 1 Amplifier are required. Recommended Amplifier: 70 Vrms, 99 Vpk, 17,5 A; equivalent to 1200W@4 Ohms with correct RMS & Peak limiting & compression settings. Recommended ASCENDO amplifiers (With additional external 1CH DSP: AIA2-1404, AIA2-2704, AIA2-6004, AIA4-6004), DSP4-10K2 Principle Sealed SPL Measurement data
130 dB @ 63 Hz peak” Frequency range Measurement data
55 Hz – 500 Hz / -3 dB
27 Hz – 500 Hz / -15 dB” Efficiency 93 dB / 1W/m Power handling 1500 W Impedance 8 Ω Air volume displacement 1,4 L / in comparison 15″ standard cinema subwoofer 0,62 L Directivity horizontal x vertical in Deg° 360° Input terminal Neutrik Speakon Enclosure Internally bra...
