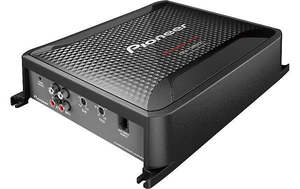

Pioneer GM-D8701 1600W MONO AMP

Pioneer GM-D8701 1600W MAX

Number of Channels: Mono
Maximum Power Output: 1,600 W
Continuous Power Output (1 O, = 1% THD N): 800 W x 1
Continuous Power Output (2 O, = 1% THD N): 500 W x 1
Continuous Power Output (4 O, = 1% THD N): 300 W x 1
Continuous Power Output Bridged (4 O): ?
Frequency Response: 10 Hz to 240 Hz
Total Harmonic Distortion (4 O):< 0.5% (100 Hz)
Signal-to-Noise Ratio (IHF-A Weighted, at 1 kHz): >100 dB
Dimensions (WxHxD): 10-3/8″ x 2-3/8″ x 7-7/8″

Main Features
Amplifier Class: Class D
Load Impedance Allowance (O): 1 to 8
Protection Control System: Yes
MOSFET Output Selection: Yes
Balanced Isolator Input Circuit: Yes
RCA Inputs: 2-Ch.
RCA Outputs (Pass-Through): Yes
Speaker Level Input: Yes
Speaker Line Input Turn-On Sensor: Yes
Hi-Volt Input Level Control: 200 mV to 6.5 V
Terminal Type: Block
Crossover Type: Variable LPF
Crossover Frequency: 40 Hz to 240 Hz
Crossover Slope: -12 dB/oct.
Bass Boost Frequency: 50 Hz
Bass Boost Level: 0 dB to 18 dB
