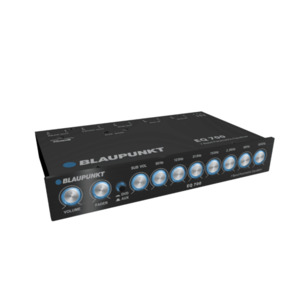

BLAUPUNKT EQ 700 7 BAND EQUALIZER
Blaupunkt EQ 700 brings out the best of it when it comes to sound tuning. It is a 7-Band Equalizer with a maximum voltage output of 7V RMS, it is designed to customize audio tuning to bring out the best of the sound qualities from your car sound systems. Compact and lightweight, it is a must-have device to improve your car sound reproduction at the tip of your finger. Now you can control the tone of your favorite songs and music.
Equalization Range
Blaupunkt EQ 700 allows you to adjust the volume of the frequency up to 12 decibels(dB) on the equalizer. You can definitely hear the difference by turning the knob left or right. EQ 700 adopts a digital interface to allow you to do your own tune settings to satisfy your own hearing preference. Specifications Specifications
- Power Supply: 11-15V DC Neg. Ground
- Max. output Voltage: 7V RMS
- Pre Graphic Frequency: 50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6KHz, 16KHz
- Equalization Range: 12dB
- Subwoofer Frequency: 30-120Hz
- Input Impedance: 15K Ohms
- S/N Ratio: 90dB
- Total Harmonic Distortion: 0.05%
- Channel Separation: 70dB
- Frequency Response: 10Hz-50KHz (-3dB)
- Dimensions: 178 x 120 x 30mm
- Weight: 0.55kg
