BlackVue DR770X Box-3CH DMS Truck Pro Dash Camera – Front, Driver Monitoring & Rear (64GB)

The BlackVue DR770X Box‑3CH DMS Truck Pro is a professional fleet dash camera system designed specifically for trucks and heavy vehicles, combining triple-channel video recording with an AI-powered Driver Monitoring System (DMS).

This advanced system records Full HD video from the front road view, driver-facing monitoring camera, and external rear truck camera, ensuring complete coverage for safety, liability protection, and fleet management.

The secure Box-type central recording unit stores footage separately from the cameras, making it harder to tamper with and ideal for commercial installations.

Equipped with Sony STARVIS sensors, built-in Wi-Fi, GPS logging, Cloud connectivity, and optional LTE, the system allows remote monitoring, real-time alerts, and fleet tracking through the BlackVue Cloud platform. Key Features AI Driver Monitoring System (DMS)

The built-in Driver Monitoring System helps improve road safety by monitoring driver behaviour. The DMS camera uses infrared LEDs to detect driver fatigue, distraction, or unsafe behaviour even in low light conditions. Triple Camera Protection

• Front Camera – Records the road ahead in Full HD
• Driver Monitoring Camera – Monitors driver attention and cabin activity
• Rear Truck Camera – Waterproof external camera to monitor behind the vehicle or cargo area Secure Box Recording Unit

Unlike traditional dash cams, the recording unit is installed separately, helping prevent tampering and improving security for fleet vehicles. BlackVue Cloud Connectivity

Connect to BlackVue Cloud to access features such as:

Remote live view

GPS vehicle tracking

Event notifications

Video backup and management Infrared Night Vision

Both the Driver Monitoring Camera and Rear Truck Camera include IR LEDs, ensuring clear recording at night or in dark environments such as cabins and loading bays. Built-in Wi-Fi & Bluetooth

Pair easily with the BlackVue App to view footage, download files, or change settings directly from your smartphone. Parking Mode Protection

When hardwired, the camera automatically switches to Parking Mode, detecting motion or impacts while the vehicle is parked. Ideal For

• Commercial trucks
• Freight and logistics fleets
• Transport companies
• Long-haul trucks
• Fleet safety monitoring
• Driver behaviour monitoring Camera Specifications

Front Camera

Sony STARVIS CMOS Sensor (2.1MP)

Resolution: Full HD 1920×1080 @ 60fps

Viewing Angle: 139° diagonal

Driver Monitoring Camera (DMS)

Sony STARVIS CMOS Sensor

Resolution: Full HD 1920×1080 @ 30fps

Viewing Angle: 109° diagonal

Infrared LEDs for night monitoring

Rear Truck Camera

Sony STARVIS CMOS Sensor

Resolution: Full HD 1920×1080 @ 30fps

Infrared LEDs for night visibility

Viewing Angle: 116° diagonal Connectivity & Smart Features

• Built-in Wi-Fi (802.11 b/g/n)
• Built-in Bluetooth (V2.1 EDR / 4.2)
• External GPS (GPS GLONASS)
• BlackVue Cloud compatible
• Optional LTE connectivity module
• Scheduled automatic reboot
• Adaptive Format Free file management

Compatible with:

BlackVue App (Android & iOS)

BlackVue Viewer (Windows & Mac)

BlackVue Web Viewer Recording Modes

• Normal Recording
• Event Recording (impact detection)
• Manual Recording (wireless button)
• Parking Mode Recording (motion detection)

Includes voice notifications for parking mode events. Storage

• 64GB microSD card included
• Supports microSD cards up to 512GB
• Event file overwrite protection (up to 51 files)
• SD card failure alerts Power & Operating Conditions

• Power Input: DC 12V – 24V
• Power Consumption (Normal Mode): approx. 750mA @ 12V
• Power Consumption (Parking Mode): approx. 600mA @ 12V
• Operating Temperature: -20°C to 70°C
• Built-in supercapacitor backup battery What’s Included

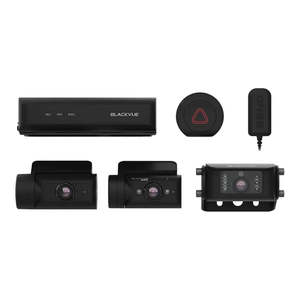

• DR770X Box main recording unit
• Front dash camera
• Driver Monitoring System (DMS) camera
• Rear external truck camera
• Wireless manual recording button (EB-1)
• Hardwiring power cable SINGL
