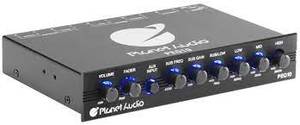

Planet Audio PEQ10 4-Band Graphic Equalizer

- 4-Band Graphic Equalizer
- Fader control for greater audio tuning
- Input selector switch enables user to choose between main input or auxiliary input
- Subwoofer frequency control allows user to adjust crossover for low, mid, and high frequencies
- Paragraphic equalizer controls control the frequency response with boost or cut in each of the frequency ranges; high midrange, low midbass, and subwoofer
- Includes a rear composite auxiliary input
- Front master volume control dial
- Input sensitivity adjustment
- Dedicated subwoofer output
- DC-to-DC power supply
- Night illumination for easy use at night
- Half-DIN chassis size for a slim installation
- Authorized Internet Dealer
- 1-year Manufacturer's warranty PEQ10 Specifications:

- 4 Band Equalizer Frequency: Sub 75 Hz, Low 200Hz, Mid 2 KHz, and Hi 20 KHz
- Subwoofer Crossover Frequency: 45-180 KHz
- Frequency Response: 20-20,000 Hz /- 0.5 dB
- Signal-to-Noise Ratio: 100 dB
- Subwoofer Gain: 20 dB
- Total Harmonic Distortion (THD): 0.005%
- Maximum Output Level: 7V RMS
- Input Impedance: 20,000 ohms
