SWITCH HANDLEBAR RH 1987 GSX-R750H

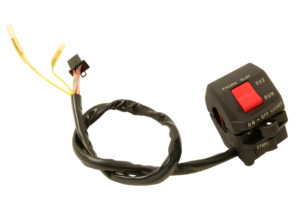

Right Handlebar Switch Assembly – 37200-06B00 (Suzuki OEM)

Right Handlebar Switch Assembly – 37200-06B00 (Suzuki OEM) :

OEM Right Handlebar Switch Assembly, part number 37200-06B00, commonly used across classic Suzuki road models with the standard separate High and Low beam bulb wiring setup (not a dual-filament single bulb). 🔧 Functions:

Engine stop / kill switch

Run • Start button (starter relay triggered)

Independent lighting control via loom (high/low beam trigger)

Factory-style rectangular connector plug AMP-style terminals ✅ Confirmed Fitment List:

This part is verified to fit the following older Suzuki models that share the same right-switch plug family and lighting loom configuration:

- GSXR750 1985 (F) (E01 2 4 6 15 16 17 18 21 22 24 25 34 39 53)
- GSXR750 1986 (G) (E01 E02 E04 E15 16 17 18 21 22 24 25 34 39 53)
- GSXR750 1987 (H) (E01 E02 04 06 15 16 17 18 21 22 24 25 34 39 53
- GSXR750X 1986 (G) (E01 E02 E04 15 16 17 18 21 22 24 25 34 39 53)
- GSXR750X 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
- GSXR1100 1986 (G) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
- GSXR1100 1987 (H) (E01 E02 4 6 15 16 17 18 21 22 24 25 34 39 53)
- GSXR1100 1988 (J) (E02 E04 E06 15 16 17 18 21 22 24 25 34 39 53) 💡 Headlight Behaviour (Factory Wiring Logic):

Low beam → 1× H7 bulb ON

High beam → 1× (opposite side) H7 bulb ON
(Switched via independent high/low trigger wires through the handlebar loom.)

This is a direct OEM replacement part. If your bike uses the older Suzuki twin reflector switch plug family, this is the correct fit for a clean plug-and-play install.
