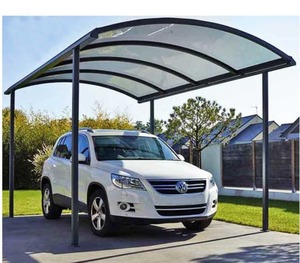

M Type - Curved Roof Carport - 1 Car- Kitset Dimensions

FRAMEWORK

Carport size(L W H): 5500 3000 2500(mm) - Size customisation is available

Main Profile Material: High strength aluminium alloy 6063-T5
Main Profile Thickness: 2mm-4mm
Wind load: 120km/h (hurricane)
Snow load: 0.2kn/㎡(snow thickness 200mm)
Aluminium Surface Finish: Powder coating, electrophoresis (EP)
Lifespan: 30 Years

POLYCARBONATE SHEET ROOF

Polycarbonate sheet size: 2mm 525mm
Material: 100% Sabic polycarbonate
Fire Retardance: B1
Temperature Range: -40℃ to 120℃
Sunshine Blackout: 70%
UV Protection: 99%
PC Roof Warranty: 10 Years

ACCESSORIES

Bolts & Screws: Stainless Steel 316
Connector: Aluminium
Waterproof Strip: EPDM- synthetic rubber seals
