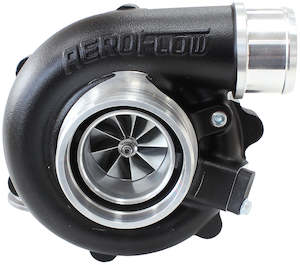

BOOSTED 4849 .72 V BAND FLANGE G25-550

Recommended horsepower rating: Â 300-550HP
Recommended engine displacement: Â 1.4L to 3.0L

- V-Band turbine inlet and outlet
- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Speed sensor port included in compressor cover

Compressor Specifications
Inducer: Â 48mm
Exducer: Â 62mm
Extended Tip: Â 62mm
A/R: Â 0.70
Turbine Specifications
Inducer: Â 54mm
Exducer: Â 49mm
A/R: Â 0.72
