Projecta Voltage Sensitive Isolator Kit 150A 12/24V - VSR150K

The Projecta name is built on a heritage which began in 1989 and today Projecta is recognised as Australasia's market leader in high quality battery maintenance and battery power products.

VSR150K

A programmable voltage sensitive isolator suitable for dual battery systems in any large 4WD, caravan or marine application. Suitable for both 12 volt and 24 volt vehicles

Functions:

Factory default settings will allow the unit to engage when the main start battery reaches a voltage of 13.3Volts. The isolator will disconnect when the start battery reaches 12.8Volts, with a delay of 10 seconds.

Programmable voltages: (optional)

The unit is completely programmable to suit your vehicle's voltage requirements.

Once installed, the isolator will allow you to 'SET' both the Cut-In voltage and the Cut-Out Voltage

Manual OVERRIDE function:

If the starter battery is flat and the aux battery is charged, the battery isolator ca be used to connect both batteries to allow for jump starting.

Press and hold the PUSH on the unit for 3 seconds, the LED display will show the combined voltage and the VSR150 will be in override mode for 60 seconds

Crank the engine. Once the engine has started the unit will automatically cancel the override function and return to the automatic charging function.

Specifications:

- Part no.: VSR150K
- Voltage: 12V
- Charging current: 125A continuous, 150A peak
- Cut-in voltage: 13.3V
- Cut-out voltage: 12.8V
- Cut-out delay: 10 seconds
- Minimum operating voltage: One battery above 8V
- Charge type: Parallel
- Control: MCU
- Mounting: Surface/firewall/battery side
- Current draw: Charging 300mA (standby 5mA)
- Surge protection: Built-in
- Approval: EMC

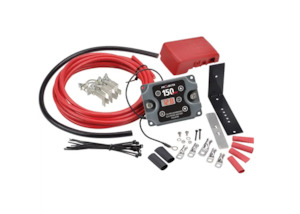

What's included:

- Voltage sensitive isolator mounting accessories
- 6mm battery cable
- 60cm auxiliary battery earth cable
- Cable ties
- 150A Voltage sensitive isolator
- Heat shrink
- Auxiliary battery terminals & cable lugs
