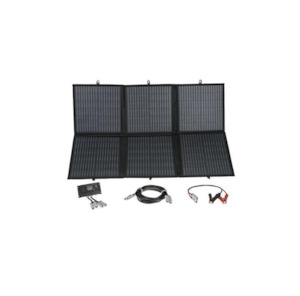

Drivetech 4x4 Foldable Solar Blanket 120W - DTSB120

DT4x4 Foldable Solar Blanket - 120W

This high-quality, lightweight solar blanket is purpose-built for camping and 4WD adventures. Made from durable materials and backed by a 12-month guarantee, it’s designed to go the distance. Each panel uses premium monocrystalline solar cells for superior sunlight absorption and higher power output compared to traditional polycrystalline panels. Perfect for caravans, camper trailers, boats, and 4x4s

DTSB120

Usually available 24 hours in-store after purchase Features:

- Portable, compact and lightweight, the 120W Foldable Solar Blanket is the perfect way to charge your batteries allowing you to power :

- fridge
- lights
- mobile devices and more.

Specifications :

- Rated Maximum Power (PM): 120W
- Voltage at Pmax VMP: 18.5V
- Current at Pmax IMP: 6.49A
- Open-Circuit Voltage VOC: 22.3V
- Short-Circuit Current ISC: 7.35A
- Maximum Series Fuse Rating: 15A
- Dimensions (Open): 1100x700x5mm (HxWxD)
- Dimensions (Closed): 360x360x70mm (HxWxD)
- Solar Cell Type: Monocrystalline
- Tolerance: ± 3%
- Normal Operating Cell Temp (NOCT): 47 ± 2°C
- Maximum System Voltage: 1000VDC
- Operating Temperature Solar Blanket: -40°C to 85°C
- Connections: 50A Power Connectors
- Regulator Type: PWM (pulse width modulation)
- Regulator Current Rating: 20A
- Maximum Regulator Voltage Input: 50V
- Float Charge: 13.7V - Default, Adjustable
- Discharge Stop: 10.7V - Default, Adjustable
- Discharge Reconnect: 12.6V - Default, Adjustable
- USB Output: 5V 3A
- Kit Weight Including Panel and Accessories: 5.95kg
- Warranty: 12 months

This product cannot be used in the rain. Water damage is not covered under warranty.
