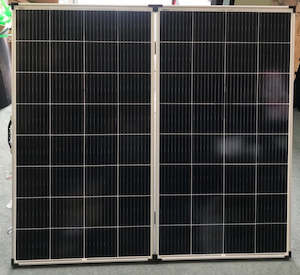

300W FOLDING SOLAR PANEL 300W FOLDABLE SOLAR CHARGER

SUPERSTART BATTERIES LIMITED

EAST TAMAKI

300W FOLDING SOLAR PANEL, 300W FOLDABLE SOLAR CHARGER

300W solar panel
300W portable SOLAR PANEL

Features:
• Padded, moulded carry bag
• Heavy duty carry handle, hinges and clasps
• Weatherproof solar charge controller with LED indicator
• 5m cable with heavy duty Anderson connectors
between module-regulator & regulator-battery clamps
• All cabled up ready to use
• 1 year warranty

These kits are the ideal solution for 4WD, camping, caravaning, boating and recreational activities wherever
power is required for lights, small TV, camping fridge, pump or other small appliances.

Maximum Power (Pmax)
300W

Open Circuit Voltage (Voc)
23.4

Short Circuit Current (Isc)
16.75A

Voltage at maximum power (Vmp) 19.9V

Current at maximum power (Imp) 15.07A

Weight
20kg

Dimensions folded
1240mm x 680 X 65mm

Temperature Coefficient of Pm
-0.47%/K

Temperature Coefficient of Voc
-0.35%/K

Temperature Coefficient of Lsc
0.11%/K

Tolerance
0 to 3%

NOCT
47ºC /-2ºC

Operating Temperature
-40 to 85ºC (-40°F to 185°F)

Maximum mechanical load
Snow load: 5400PA(IEC Standard); Wind load: 2400Pa(IEC Standard)

Maximum series fuse rating
10A

Maximum System Voltage
1000 VDC
